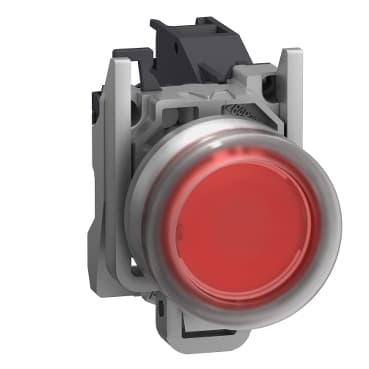

schneider XB4BP482GEX

Selling Points

  • 1Engineered for consistent operation in demanding electrical environments.
  • 2Optimized design to minimize energy losses and maximize power delivery.
  • 3Built with high-quality materials for extended lifespan and reduced maintenance.
  • 4Suitable for a wide range of applications, including industrial and commercial settings.
  • 5Incorporates the latest technological advancements for enhanced performance and safety.
Product Details
XB4BP482GEX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Complete push-button
Device short name
XB4
Bezel material
Chromium plated metal
Fixing collar material
Zamak
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Dust zone
Zone 21 - 22
Gas zone
Zone 1 - 2
Type of operator
spring return
Operator profile
Red projecting
Operator additional information
Booted (clear silicon) for insertion of legend
Contacts type and composition
1 NC
Width
1.8 in (46.2 mm)
Height
1.2 in (30 mm)
Depth
2.8 in (72 mm)
Net Weight
0.240 lb(US) (0.109 kg)
Device mounting
Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1
Fixing center
>= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm)
Embedding Depth
2.3 in (58 mm)
marking
Ex db eb IIC Gb<br />Ex tb IIIC Db<br />II 2 GD
Shape of signaling unit head
Round
Contact operation
Slow-break
Positive opening
With
Operating travel
0.066 in (1.688 mm) engagement point)<br />0.129 in (3.271 mm) changing state point)<br />0.174 in (4.424 mm) total travel)
Operating force
2.873 N
Mechanical durability
5000000 cycles
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A 380 V, AC, A600 IEC 60947-5-1<br />3 A 240 V, AC, A600 IEC 60947-5-1<br />6 A 120 V, AC, A600 IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 IEC 60947-5-1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-4…167 °F (-20…75 °C)
IP degree of protection
IP66 IEC 60529
Standards
IEC 60079-0:2009<br />EN/IEC 60079-1:2009<br />IEC 60079-7:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-1<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213
Product Certifications
INERIS 04ATEX9004U

Specifications may be subject to change without notice
