Product Model

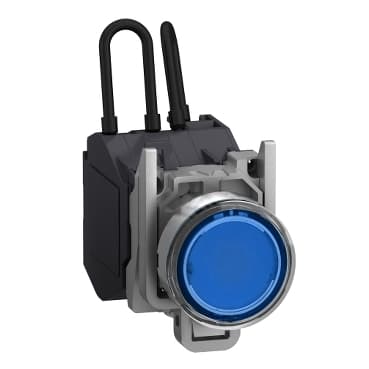

XB4BW26BM5GEX
Selling Points
- 1High-efficiency design for reduced energy consumption.
- 2Compact and lightweight for easy integration.
- 3Robust construction for long-lasting performance.
- 4Wide range of input voltages for flexibility.
- 5Meets or exceeds industry standards for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4 | Product or Component Type | Push-to-test pilot light |
Device short name | XB4 | Bezel material | Chromium plated metal |
Fixing collar material | Zamak | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 1 | Height | 1.2 in (30 mm) |
Width | 1.8 in (46.2 mm) | Depth | 2.8 in (72 mm) |
Net Weight | 0.258 lb(US) (0.117 kg) | Device mounting | Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm IEC 60947-1 |
Fixing center | >= 30 x 40 mm support panel) 0.04…0.2 in (1…6 mm) | Embedding Depth | 2.3 in (58 mm) |
marking | Ex tb IIIC Db<br />Ex db eb mb IIC Gb<br />II 2 GD | Shape of signaling unit head | Round |
cap/operator or lens colour | Blue | Operator additional information | Booted (clear silicon) |
Contacts type and composition | 1 NO | Contact operation | Slow-break |
Positive opening | Without | Operating travel | 0.065 in (1.657 mm) engagement point)<br />0.182 in (4.622 mm) changing state point)<br />0.175 in (4.452 mm) total travel) |
Operating force | 3.962 N | Mechanical durability | 5000000 cycles |
Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1 | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
[Ui] rated insulation voltage | 415 V | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ie] rated operational current | 1.9 A 380 V, AC, A600 IEC 60947-5-1<br />3 A 240 V, AC, A600 IEC 60947-5-1<br />6 A 120 V, AC, A600 IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 IEC 60947-5-1 | Signalling type | Steady |
Light source | Integral LED | [Us] Rated Supply Voltage | 24...254 V AC/DC |
current consumption | 2...10 mA | Service life | 100000 h |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -4…167 °F (-20…75 °C) | Overvoltage category | I IEC 60536 |
IP degree of protection | IP66 IEC 60529 | Standards | IEC 60079-0:2009<br />IEC 60079-7:2009<br />EN/IEC 60079-18:2009<br />IEC 60079-31:2009<br />UL 60079-0<br />UL 60079-18<br />UL 60079-31<br />ANSI/ISA 12.12.01<br />CSA C22.2 No 213 |
Product Certifications | INERIS 04ATEX9004U | Dust zone | Zone 21 - 22 |
Gas zone | Zone 1 - 2 |
