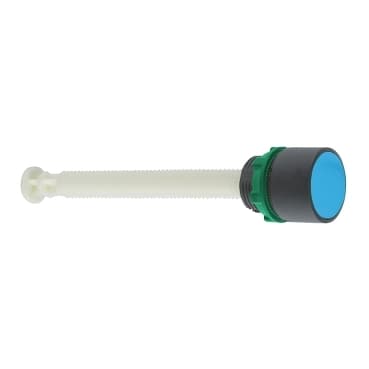

Product Model
XB5AA862
Selling Points
- 1Designed for high reliability and durability.
- 2Meets international safety standards for electrical panels.
- 3Easy installation with modular design.
- 4Compatible with various electrical systems.
- 5Enhanced protection against overloads and short circuits.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Manual overload reset push-button |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Shape of signaling unit head | Round |
Operator profile | Blue flush, unmarked | Activating distance | 4.7…10.1 in (120…257 mm) |
Device presentation | Complete product | Height | 1.1 in (29 mm) |
Width | 1.1 in (29 mm) | Depth | 10.1 in (257 mm) |
Net Weight | 0.09 lb(US) (0.04 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Operating travel | 0.4 in (10 mm) | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Electrical shock protection class | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529 |
NEMA degree of protection | NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | EN/IEC 60947-1 | Product Certifications | UL Listed |
Specifications may be subject to change without notice
