Product Model
XB5AL734155
Selling Points
- 1High-quality materials ensure long-lasting performance.
- 2Compact design for easy installation in tight spaces.
- 3Advanced safety features for secure operation.
- 4Compatible with a wide range of electrical systems.
- 5Energy-efficient design to reduce power consumption.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

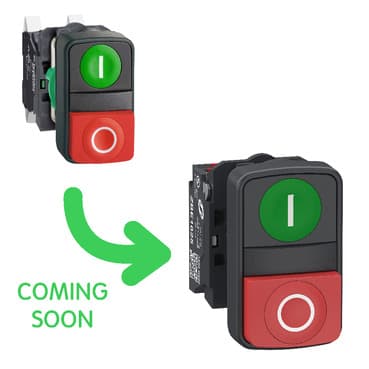

Range of Product | Harmony XB5 | Product or Component Type | Double-headed push-button |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Red projecting, O white)<br />Green flush, I white) |
Operators description | Green ''I'' - red ''O'' | Contacts type and composition | 1 NO + 1 NC |
Contact operation | Slow-break | Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 |
Device presentation | Complete product | Height | 2.0 in (50 mm) |
Width | 1.2 in (30 mm) | Depth | 2.008 in (51 mm) |
Terminals description ISO n°1 | (21-22)NC<br />(13-14)NO | Net Weight | 0.099 lb(US) (0.045 kg) |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
Contacts usage | Standard contacts | Positive opening | With IEC 60947-5-1 appendix K |
Operating travel | 0.048 in (1.217 mm) NC changing electrical state)<br />0.08 in (2.05 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.25 N NC changing electrical state<br />2.45 N NO changing electrical state |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 300 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
[Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1<br />3 A 240 V, AC-15, A300 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q300 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA |
Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 | Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
