Product Model

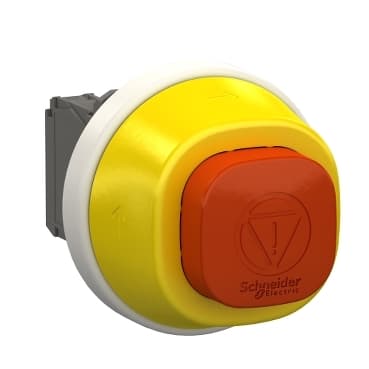

XB5AS84W3B5
Selling Points
- 1Antimicrobial and Illuminated Design: Features antimicrobial properties and LED illumination for enhanced visibility.
- 2IP69 Rating: Highly resistant to dust, water, and impact, making it suitable for harsh environments.
- 3Trigger Latching Turn-to-Release: Easy to install with trigger latching mechanism for secure operation.
- 424V Compatibility: Operates on 24V AC/DC, ensuring compatibility with various systems.
- 5Standard 22mm Diameter: Fits standard 22mm cut-outs, ensuring easy integration into existing machinery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Emergency stop push-button<br />Emergency switching off push-button |
Device short name | XB5 | Bezel material | Plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
Local signalling | Red LED / white LED 24 V AC/DC | Light source | Protected LED |
[Us] rated supply voltage | 24 V AC/DC 50/60 Hz | Light source colour | White<br />Red |
Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
Reset | Turn to release | Operator profile | Red square 32 mm, IEC |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Screw-clamp terminals, <= 2 x 1.5 mm² with or without cable end IEC 60947-1<br />Screw-clamp terminals, >= 1 x 0.22 mm² with or without cable end IEC 60947-1 | Device presentation | Complete product |
Height | 2.4 in (60 mm) | Width | 2.4 in (60 mm) |
Depth | 3.3 in (85 mm) | Terminals description ISO n°1 | (1-2)NC<br />(3-4)NO |
Net Weight | 0.236 lb(US) (0.107 kg) | Electrical insulation class | Class II IEC 61140 |
Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Device mounting | Fixing hole 0.9 in (22.5 mm) +/- 0.2 mm<br />Fixing hole 0.4 in (9 mm) +/- 0.5 mm |
Fixing mode | Fixing nut +/- 0.2) | Contacts usage | Standard |
Positive opening | With NC contact IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Mechanical durability | 300000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | Resistance to electrostatic discharge | 4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />ISO 21702<br />ISO 22196:2011<br />UL 60947-5-5<br />IEC 60947-5-5<br />NISD |
Product Certifications | UL Listed<br />CSA<br />EAC<br />CCC | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
