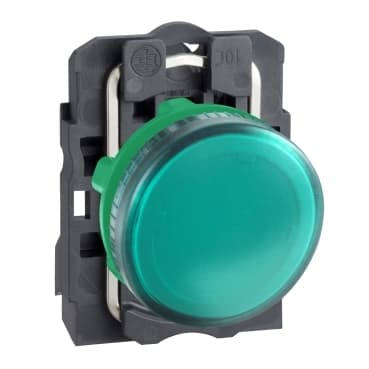

Product Model
XB5AV63
Selling Points
- 1Robust Construction: Designed to withstand harsh environments.
- 2Easy Assembly: Quick and easy assembly and disassembly.
- 3Versatile Connections: Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 4Sustainable Packaging: Made with recycled cardboard for reduced carbon footprint.
- 5High Voltage Compatibility: Operates at up to 250V for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Pilot light |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Green |
Operator additional information | With plain lens | Light source | Bulb not included |
Bulb base | BA 9s | Light block supply | Direct <2.4 W |
Light source colour | Green | [Us] rated supply voltage | <= 250 V |
Height | 1.7 in (42 mm) | Width | 1.2 in (30 mm) |
Depth | 2.2 in (55 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.082 lb(US) (0.037 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | Signalling type | Steady |
Device presentation | Complete product | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Electrical shock protection class | Class II IEC 60536 | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-1 |
Product Certifications | CSA<br />UL Listed | Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
