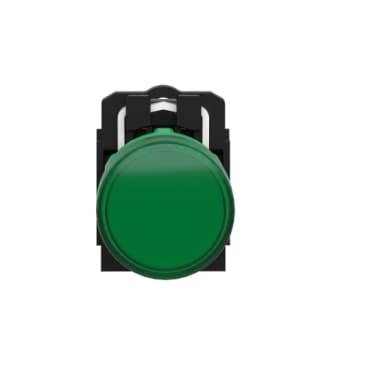

Product Model
XB5AVB3
Selling Points
- 1High reliability and durability for long-lasting performance.
- 2Compact design for easy installation in tight spaces.
- 3Advanced safety features to ensure secure operation.
- 4Compatible with a wide range of electrical systems.
- 5Energy-efficient design to reduce operational costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Pilot light |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Green |
Operator additional information | With plain lens | Light source | Universal LED |
Bulb base | Integral LED | Light source colour | Green |
[Us] rated supply voltage | 24 V AC/DC 50/60 Hz | Device presentation | Complete product |
Height | 1.7 in (42 mm) | Width | 1.2 in (30 mm) |
Depth | 2.1 in (54 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.084 lb(US) (0.038 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | Signalling type | Steady |
GCR BRIDGE | XB5AVCUST03 | compatibility code | XB5 |
Supply voltage limits | 19.2…30 V DC<br />21.6…26.4 V AC | current consumption | 18 mA |
Service life | 100000 h at rated voltage and 25 °C | Surge withstand | 1 kV IEC 61000-4-5 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
IK degree of protection | IK05 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | CSA<br />UL Listed | Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 |
Shock resistance | 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />30 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electromagnetic emission class B conforming to IEC 55011 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
