Product Model

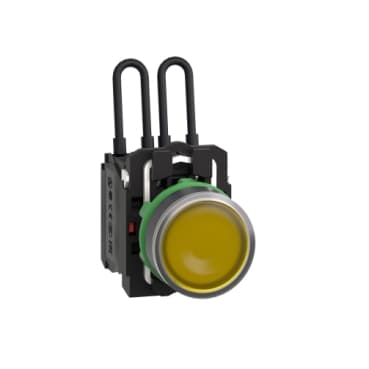

XB5AW28B5
Selling Points
- 1High-efficiency design for reduced energy consumption.
- 2Compact and lightweight for easy installation in tight spaces.
- 3Robust construction for reliable operation in harsh environments.
- 4Wide range of input voltage options for versatile use.
- 5Compliant with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Push-to-test pilot light |
Device short name | XB5 | Bezel material | Plastic |
Fixing collar material | Plastic | Mounting diameter | 0.9 in (22.5 mm) |
Sale per indivisible quantity | 1 | Height | 1.7 in (42 mm) |
Width | 1.2 in (30 mm) | Depth | 2.2 in (55 mm) |
Net Weight | 0.104 lb(US) (0.047 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Embedding Depth | 1.8 in (46 mm) | Shape of signaling unit head | Round |
cap/operator or lens colour | Amber | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
Light source | Universal LED | Light source colour | Amber |
[Us] rated supply voltage | 24 V AC/DC 50/60 Hz | current consumption | 18 mA |
Service life | 1.5 year(s) | Surge withstand | 1 kV |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class II IEC 60536 |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | IEC 60947-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
