Product Model

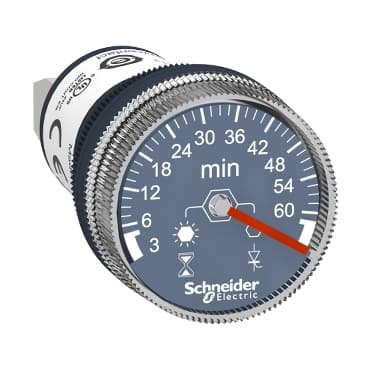

XB5DTGM5
Selling Points
- 1Precise time delay from 3 to 60 minutes.
- 2Compatible with 100-240V AC/DC.
- 3Panel mounted design for easy installation.
- 4Monofunctional operation for simplicity.
- 5Durable plastic construction for robust performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Timer |
Sale per indivisible quantity | 1 | Bezel material | Plastic |
Fixing collar material | Plastic | Mounting diameter | 0.9 in (22 mm) |
Panel Thickness | 0.04…0.2 in (1…6 mm) | Shape of signaling unit head | Round |
Time delay range | 3...60 min | Time delay type | A |
Repeat accuracy | +/- 0.5 % | Setting accuracy of time delay | +/- 10 % of full scale 77 °F (25 °C) IEC 61812-1 |
Temperature Drift | +/- 0.05 %/°C | Voltage drift | +/- 0.2 %/V |
Protection Type | Overvoltage protection | Pollution degree | 3 IEC 60664-1 |
Output Type | Thyristor | Temporary permissible current | 10 A 0.01 s |
Minimum switching current | 10 mA | Voltage drop in closed state | 5 V |
Residual current in open state | 5 mA | Power Consumption in W | 1 W |
maximum power consumption in VA | 1.5 VA | Reset time | 30 ms after time delay on de-energisation<br />60 ms during time delay on de-energisation |
Local signalling | LED green, steady timing in progress<br />LED, off no timing in progress and output relay energised | [Us] rated supply voltage | 110...230 V AC/DC |
Supply voltage limits | 93.5…253 V AC/DC | Output short-circuit protection | No |
Connections - terminals | Screw terminals 1 x 4 mm² IEC 60947-1<br />Screw terminals 1 x 2.5 mm² IEC 60947-1 | IP degree of protection | IP65 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 |
Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) | Ambient Air Temperature for Storage | -4…176 °F (-20…80 °C) |
Tightening torque | 4.4 lbf.in (0.5 N.m) | Dielectric strength | 1500 V IEC 61812-1 |
[Ui] rated insulation voltage | 250 V IEC 60947-1<br />250 V IEC 60664-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1<br />4 kV IEC 60664-1 |
Surge withstand | 2 kV, level 3 IEC 61000-4-5 | Overvoltage category | Class 3 IEC 60536<br />Class 3 IEC 60664-1 |
Vibration resistance | 0.15 mm 10…60 Hz)IEC 60068-2-6<br />2 gn 60…150 Hz)IEC 60068-2-6 | Shock resistance | +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27 |
Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 | Electromagnetic compatibility | Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2<br />Electromagnetic emission class B conforming to IEC 55011 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz level 3 IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4...2 GHz level 2 IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz level 1 IEC 61000-4-3 | Immunity to radioelectric fields | 10 V level 3 IEC 61000-4-6 |
Disturbance radiated/conducted | Class B EN 50022 | Standards | UL 508<br />IEC 61812-1 |
Product Certifications | CE<br />UL Listed | Device presentation | Monolithic product |
Height | 2.4 in (62 mm) | Diameter | 1.1 in (29 mm) |
Net Weight | 0.060 lb(US) (0.027 kg) |
Specifications may be subject to change without notice
