schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

XB5EV57L4

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

35550

In Stock
Last updated: 2025/5/1
View Specifications

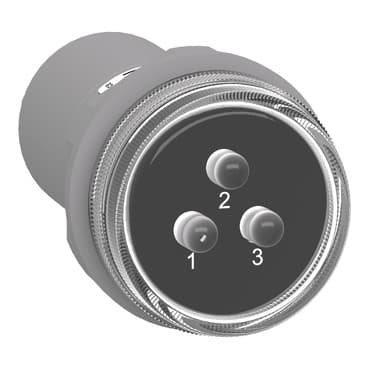

schneider XB5EV57L4

Selling Points

  • 1Robust Design: Impact, dust, water, and vibration resistant (IP67).
  • 2Easy Assembly: Quick and easy disassembly for maintenance.
  • 3Versatile Connections: Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
  • 4High Visibility: Three white LEDs for clear visibility in various lighting conditions.
  • 5Environmental Sustainability: Part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign for extended product lifetimes and recyclability.
Product Details
XB5EV57L4
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5
Product or Component Type
Monolithic pilot light
Device short name
XB5
Bezel material
Plastic
Fixing collar material
Plastic
Mounting diameter
1.2 in (30 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
Clear
Light source
Protected LED
Bulb base
Integral LED
Light source colour
White
Phase
3 phase
Device presentation
Monolithic product
Height
2.6 in (65.5 mm)
Width
1.4 in (36 mm)
Depth
3.03 in (77 mm)
Net Weight
0.143 lb(US) (0.065 kg)
Connections - terminals
Faston terminals 6.3 mm IEC 60947-1
[Uimp] rated impulse withstand voltage
1 kV IEC 61000-4-5
Compatibility code
XB5
Supply voltage limits
450 V AC
Current Consumption
5...8 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-22…158 °F (-30…70 °C)
IP degree of protection
IP67 front face)<br />IP20 back face)
IK degree of protection
IK10 conforming to IEC 50102
Standards
IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Electromagnetic compatibility
Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2

Specifications may be subject to change without notice
