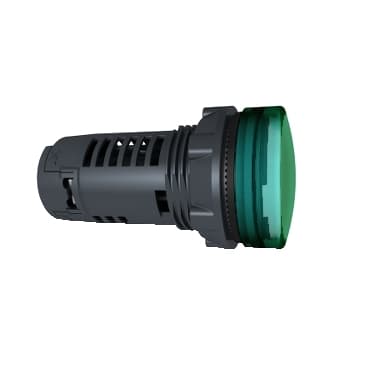

Product Model
XB5EVG3
Selling Points
- 1Made from high-quality plastic with a NEMA 4X/13 enclosure for enhanced protection.
- 2Operates at 110/120 VAC with a low amperage rating of 18 mA.
- 3Withstands operating temperatures from -25 to 70°C and storage temperatures from -40 to 70°C.
- 4Designed to resist 5 gn vibration and 50 gn shock.
- 5Features a screw clamp terminal for quick and easy mounting on panels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Pilot light |
Device short name | XB5 | Bezel material | Dark grey plastic |
Fixing collar material | Plastic | Head type | Standard |
Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | cap/operator or lens colour | Green |
Operator additional information | With plain lens | Light source | Universal LED |
Bulb base | Integral LED | Light source colour | Green |
[Us] rated supply voltage | 110...120 V AC 50/60 Hz | Device presentation | Monolithic product |
Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
Depth | 2.1 in (54 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.084 lb(US) (0.038 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | Signalling type | Steady |
compatibility code | XB5 | Supply voltage limits | 100…132 V AC |
current consumption | 14 mA | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653 |
NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-5-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
Vibration resistance | 5 gn 12…500 Hz)IEC 60068-2-6 | Shock resistance | 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />30 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electromagnetic emission class B conforming to IEC 55011 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
