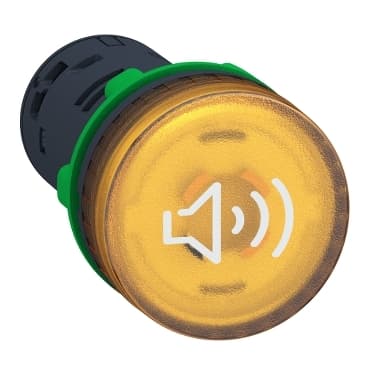

Product Model
XB5KS2M8
Selling Points
- 1High-efficiency design for reduced energy consumption.
- 2Compact and lightweight for easy installation.
- 3Wide input voltage range for flexible operation.
- 4Built-in protection features for enhanced reliability.
- 5Meets or exceeds industry standards for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Annunciator |
Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
cap/operator or lens colour | Yellow | Supply circuit type | AC |
Supply frequency | 50/60 Hz | Signalling type | Continuous or intermittent tone |
Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % | Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m |
Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
Depth | 2.2 in (55 mm) | Net Weight | 0.053 lb(US) (0.024 kg) |
current consumption | <= 35 mA | [Us] rated supply voltage | 230...240 V +/- 10 % |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class II IEC 60536 |
NEMA Degree of Protection | NEMA 13<br />NEMA 4X | Standards | UL 508<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-1<br />IEC 60529<br />IEC 62262<br />IEC 50102 |
Product Certifications | UL Listed<br />CSA<br />BV |
Specifications may be subject to change without notice
