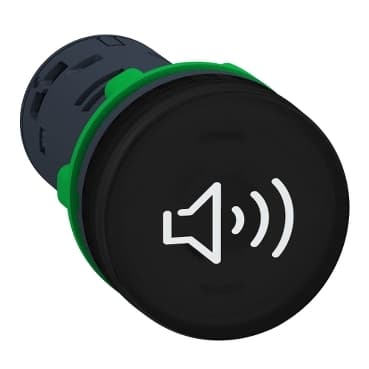

Product Model
XB5KSB
Selling Points
- 1Made from dark grey plastic, designed to withstand harsh industrial conditions.
- 2Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
- 3Quick and easy assembly and disassembly for hassle-free installation.
- 4Compliant with EU RoHS Directive and supports Schneider Electric's Net Zero initiative by 2050.
- 5Produces a clear signal with a noise level of up to 90 dB at 6.8 kHz frequency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Annunciator |
Bezel material | Dark grey plastic | Mounting diameter | 0.9 in (22 mm) |
Head type | Standard | cap/operator or lens colour | Black |
Supply circuit type | AC/DC | Supply frequency | 50/60 Hz |
Signalling type | Continuous or intermittent tone | Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
Resistance to high pressure washer | 1305.3 psi (9000000 Pa) 176 °F (80 °C) 0.1 m | Height | 1.1 in (29 mm) |
Width | 1.1 in (29 mm) | Depth | 2.2 in (55 mm) |
Net Weight | 0.053 lb(US) (0.024 kg) | current consumption | <= 28 mA |
[Us] rated supply voltage | 24 V +/- 10 % | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Overvoltage category | Class II IEC 60536 | Electrical shock protection class | Class II IEC 60536 |
NEMA Degree of Protection | NEMA 4X<br />NEMA 13 | Standards | IEC 60947-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1<br />IEC 60529<br />IEC 62262<br />IEC 50102 |
Product Certifications | UL Listed<br />CSA<br />BV |
Specifications may be subject to change without notice
