Product Model

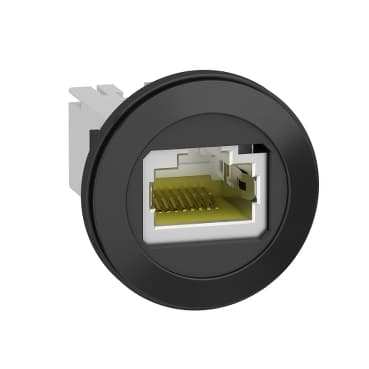

XB5PRJ45
Selling Points
- 1Robust Design: Withstands harsh environments and meets IP66, IP67, and IP68 standards for durability.
- 2Easy Assembly: Quick and simple installation with various connection options like screw clamp, connector, and spring terminal.
- 3Green Premium: Compliant with RoHS and WEEE regulations, promoting sustainability and recyclability.
- 4Versatile Connectivity: Supports Ethernet connections with a female/female RJ45 connector on both sides.
- 5Net Zero Commitment: Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships and circularity initiatives.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Panel mounted RJ45 port |
Device short name | XB5P | Sale per indivisible quantity | 1 |
Mounting diameter | 0.9 in (22 mm) | Thickness | 0.2 in (6 mm) without protection cover<br />0.06…0.2 in (1.5…5 mm) with protection cover plastic<br />0.06…0.2 in (1.5…5 mm) with protection cover rigid plastic<br />0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
Bezel material | Plastic | Fixing collar material | Plastic |
Integrated connection type | RJ45 Ethernet 10 Gbit/s | Minimum number of matings | 750 cycles |
IP degree of protection | IP20 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Tightening torque | 13.3 lbf.in (1.5 N.m) |
Vibration resistance | 5 gn 10…500 Hz) IEC 60068-2-6 | Standards | IEC 60603-7 |
Product Certifications | UL Listed<br />CSA | Height | 1.1 in (28 mm) |
Width | 1.1 in (28 mm) | Depth | 1.4 in (36 mm) |
Net Weight | 0.0586 lb(US) (0.0266 kg) |
Specifications may be subject to change without notice
