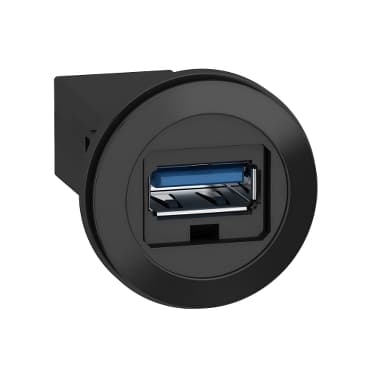

Product Model
XB5PUSB3
Selling Points
- 1High reliability and durability for demanding industrial environments.
- 2Compact design for easy integration into existing systems.
- 3Advanced power management for precise voltage control.
- 4Compliant with international safety standards for peace of mind.
- 5Compatible with a wide range of devices and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5 | Product or Component Type | Panel mounted USB port |
Device short name | XB5P | Sale per indivisible quantity | 1 |
Mounting diameter | 0.9 in (22 mm) | Thickness | 0.2 in (6 mm) without protection cover<br />0.06…0.2 in (1.5…5 mm) with protection cover plastic<br />0.06…0.2 in (1.5…5 mm) with protection cover rigid plastic<br />0.06…0.10 in (1.5…2.5 mm) with protection cover metal |
Bezel material | Plastic | Fixing collar material | Plastic |
Integrated connection type | USB 3.0 type A | Minimum number of matings | 1500 cycles |
IP degree of protection | IP20 front: conforming to IEC 60529<br />IP20 back: conforming to IEC 60529 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Tightening torque | 13.3 lbf.in (1.5 N.m) |
Vibration resistance | 5.35 gn15 min per axis | Shock resistance | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
Standards | USB 3.0 | Product Certifications | CSA<br />UL Listed |
Height | 1.1 in (28 mm) | Width | 1.1 in (28 mm) |
Depth | 1.7 in (44 mm) | Net Weight | 0.0373 lb(US) (0.0169 kg) |
Specifications may be subject to change without notice
