Product Model
XB5RFA02
Selling Points
- 1Wireless & Batteryless Design: Eliminates wiring and associated equipment for reduced installation time and cost.
- 2Programmable Receiver: Configurable with 2 relays, ideal for remote control of connected circuits.
- 3Versatile Voltage Range: Operates on 24 to 240 V AC/DC, ensuring compatibility with diverse applications.
- 4Robust Construction: Made from durable plastic, designed to withstand harsh environments.
- 5Green Premium Product: Compliant with EU RoHS and REACh regulations, promoting sustainability and recyclability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless package |
Device short name | XB5R | Head material | Plastic |
frequency | 2405 MHz transmitter<br />2405 MHz receiver | emission class | 5M00G7W |
Antenna type | Omnidirectional | Control type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
Type of receiver | Programmable receiver 2 relays) | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz |

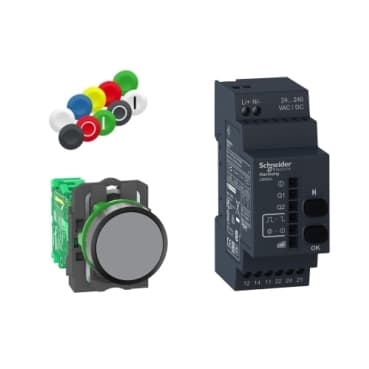

Kit composition | 1 transmitter<br />1 set of caps<br />1 receiver<br />1 fixing collars<br />1 0.9 in (22 mm)<br />1 push-button head 0.9 in (22 mm) | Status LED | 1 LED Green power ON<br />2 LEDs Green relay ON<br />2 LEDs Green function mode<br />1 LED green and yellow reception signal |
Communication port protocol | Zigbee IEEE 802.15.4 | Max power consumption in W | 1 mW |
Number of Channels | 1 | Modulation technique | O-QPSK |
Bandwidth | 5 MHz | Antenna gain | 0 dBi |
Customizable | No | Compatibility code | XB5R |
Product Certifications | UL<br />CCC<br />GOST<br />CSA<br />C-tick | marking | CE |
Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-1 | Radio agreement | SRRC<br />RSS<br />ARIB T66<br />FCC<br />ICASA<br />ANATEL |
Specifications may be subject to change without notice
