Product Model
XB5RFB01
Selling Points
- 1Wireless and batteryless operation for continuous use.
- 2Simple and reliable solution for remote control of machines, conveyors, and cranes.
- 3Quick and easy assembly and disassembly.
- 4Robust design to withstand harsh environments.
- 5Compatible with various connection types: screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless package |
Device short name | XB5R | Head material | Plastic |
frequency | 2405 MHz transmitter<br />2405 MHz receiver | emission class | 5M00G7W |
Antenna type | Omnidirectional | Control type | Wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
Type of receiver | Non-programmable receiver 1 relay) | [Us] Rated Supply Voltage | 24 V DC |

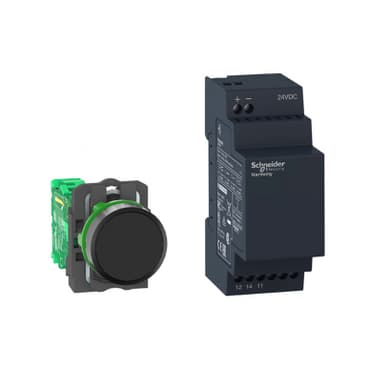

Kit composition | 1 transmitter<br />1 set of caps<br />1 receiver<br />1 fixing collars<br />1 0.9 in (22 mm)<br />1 push-button head 0.9 in (22 mm) | Communication port protocol | Zigbee IEEE 802.15.4 |
Max power consumption in W | 1 mW | Number of Channels | 1 |
Modulation technique | O-QPSK | Bandwidth | 5 MHz |
Antenna gain | 0 dBi | Customizable | No |
compatibility code | XB5R | [Us] rated supply voltage | 24 V |
Product Certifications | UL<br />C-tick<br />GOST<br />CSA<br />CCC | marking | CE |
Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508 | Radio agreement | SRRC<br />ICASA<br />RSS<br />ANATEL<br />FCC<br />ARIB T66 |
Specifications may be subject to change without notice
