schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

XB5RMA04

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

35887

In Stock
Last updated: 2025/5/3
View Specifications

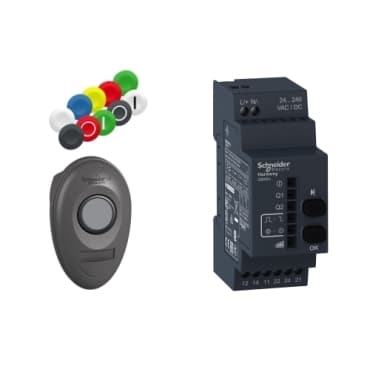

schneider XB5RMA04

Selling Points

  • 1Wireless and Batteryless Design: The XB5RMA04 features a wireless and batteryless push button for seamless operation.
  • 2Configurable Receiver: The set includes a programmable receiver with 2 relay outputs, offering flexibility in your control systems.
  • 3Durable Construction: Built to withstand harsh environments, the product ensures reliability in demanding conditions.
  • 4Versatile Connections: Compatible with screw clamp, connector, Faston connector, spring terminal, or printed circuit board connections.
  • 5Environmental Sustainability: Made with recycled cardboard packaging and part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign for reduced carbon footprint.
Product Details
XB5RMA04
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5R
Product or Component Type
Wireless and batteryless package
Device short name
XB5R
Head material
Plastic
frequency
2405 MHz transmitter<br />2405 MHz receiver
emission class
5M00G7W
Antenna type
Omnidirectional
Control type
Wireless and batteryless push-button handy box assembled on fixing collar
Type of receiver
Programmable receiver 2 relays)
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Kit composition
1 transmitter<br />1 set of caps<br />1 receiver<br />1 fixing collars<br />1 0.9 in (22 mm)<br />1 push-button head 0.9 in (22 mm)<br />1 handy box
Status LED
1 LED Green power ON<br />2 LEDs Green relay ON<br />2 LEDs Green function mode<br />1 LED green and yellow reception signal
Communication port protocol
Zigbee IEEE 802.15.4
Max power consumption in W
1 mW
Number of Channels
1
Modulation technique
O-QPSK
Bandwidth
5 MHz
Antenna gain
0 dBi
Customizable
No
compatibility code
XB5R
[Us] rated supply voltage
24...240 V
Product Certifications
CCC<br />CSA<br />C-tick<br />GOST<br />UL
marking
CE
Standards
CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />UL 508
Radio agreement
ANATEL<br />SRRC<br />ICASA<br />FCC<br />ARIB T66<br />RSS

Specifications may be subject to change without notice
