Product Model

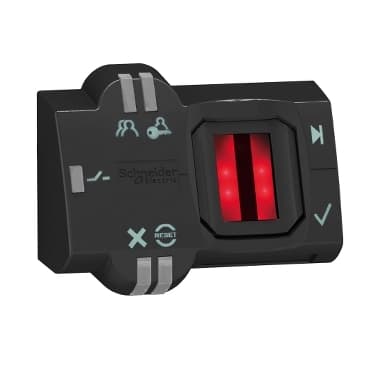

XB5S1B2M12
Selling Points
- 1Supports various connections including screw clamp, connector, Faston connector, spring terminal, and printed circuit board.
- 2Maintains its state without the need for continuous power, ensuring reliability in harsh environments.
- 3Compatible with both AC and DC voltages at 24V, providing flexibility in application.
- 4Quick and simple installation and removal process for efficient maintenance.
- 5Made with recycled cardboard packaging and part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign for reduced carbon footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product or Component Type | Biometric switch | Product Specific Application | Materials handling<br />Industrial machines |
Device short name | XB5S | Bezel material | Dark grey plastic |
Mounting diameter | 0.9 in (22 mm) | Output Type | PNP |
Sale per indivisible quantity | 1 | IP degree of protection | IP20 EN/IEC 60529 rear face)<br />IP65 EN/IEC 60529 front face) |
Type of operator | Stay put | Operator position information | 2 positions |
Operator profile | fingerprint reader | Memory usage | 200 users with up to 2 fingerprints per user |
Enclosure Material | Polyamide PA66 | Cable insulation material | PvR |
Operating position | Horizontal position<br />Vertical surface installation<br />Flat surface installation | Function of module | Bi-stable |
Net Weight | 0.403 lb(US) (0.183 kg) | marking | CE |
Local signalling | for output state indicator 1 LED (green)<br /> for administrator's registration mode 1 LED (orange)<br /> for operator's registration mode 1 LED (orange)<br /> for error 1 LED (red)<br /> for reset 1 LED (red) | Short-circuit protection | 250 mA external fuse gG |
[Us] rated supply voltage | 24 V DC | Electrical connection | M12 connector 0.7 ft (0.2 m) |
Supply voltage limits | 20…30 V DC | Protection Type | Reverse polarity<br />Overload protection<br />Short-circuit |
Maximum switching current | 200 mA | [Ures] residual voltage | 1 V closed state |
Current consumption | <= 70 mA no-load | Maximum delay first up | 3 s + 0.5 ms per user registered |
Maximum delay recovery | 1.5 s | Maximum delay response | 1.5 s |
Range of Product | Harmony XB5S | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Ambient Air Temperature for Operation | 23…122 °F (-5…50 °C) | NEMA degree of protection | NEMA 12 |
Standards | IEC 61000-6-4<br />IEC 61000-6-2 | Product Certifications | CSA<br />UL |
Vibration resistance | +/- 3 mm 5…9 Hz)IEC 60068-2-6<br />1 gn 9…500 Hz)IEC 60068-2-6 | Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
Specifications may be subject to change without notice
