schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

XB5S6B2M12

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

35898

In Stock
Last updated: 2025/5/3
View Specifications

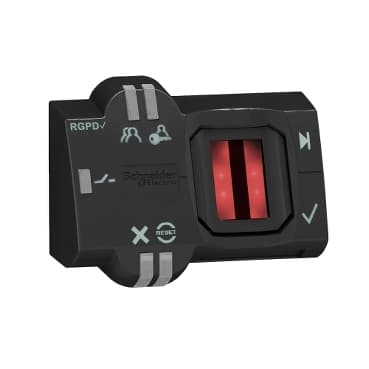

schneider XB5S6B2M12

Selling Points

  • 1High detection reliability with minimal false positives.
  • 2Secure access control using biometric technology.
  • 3Impact, dust, and water resistant (IP65).
  • 4Easy installation and setup with a standard Ø 22 mm cut out.
  • 5Up to 200 user records with up to 2 fingerprints per user.
Product Details
XB5S6B2M12
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product or Component Type
Biometric switch RGPD
Product Specific Application
Industrial machines<br />Materials handling
Device short name
XB5S
Bezel material
Plastic
Mounting diameter
0.9 in (22 mm)
Output Type
PNP
Sale per indivisible quantity
1
IP degree of protection
IP20 IEC 60529 rear face)<br />IP65 IEC 60529 front face)
Type of operator
Stay put
Operator position information
2 positions
Operator profile
fingerprint reader
Memory usage
200 users with up to 2 fingerprints per user
Enclosure Material
Polyamide PA66
Cable insulation material
PvR
Operating position
Horizontal position<br />Flat surface installation<br />Vertical surface installation
Function of module
Bi-stable
Net Weight
0.403 lb(US) (0.183 kg)
marking
CE
Local signalling
for output state indicator 1 LED (green)<br /> for administrator's registration mode 1 LED (orange)<br /> for operator's registration mode 1 LED (orange)<br /> for error 1 LED (red)<br /> for reset 1 LED (red)
Short-circuit protection
250 mA external fuse gG
[Us] rated supply voltage
24 V DC
Electrical connection
M12 connector 0.7 ft (0.2 m)
Supply voltage limits
20…30 V DC
Protection Type
Reverse polarity<br />Overload protection<br />Short-circuit
Maximum switching current
200 mA
[Ures] residual voltage
1 V closed state
Current consumption
<= 70 mA no-load
Maximum delay first up
3 s + 0.5 ms per user registered
Maximum delay recovery
1.5 s
Maximum delay response
1.5 s
Range of Product
Harmony XB5S
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Ambient Air Temperature for Operation
23…122 °F (-5…50 °C)
NEMA degree of protection
NEMA 12
Standards
IEC 61000-6-4<br />IEC 61000-6-2
Product Certifications
CSA<br />UL
Vibration resistance
+/- 3 mm 5…9 Hz)IEC 60068-2-6<br />1 gn 9…500 Hz)IEC 60068-2-6
Shock resistance
50 gn 11 ms IEC 60068-2-27

Specifications may be subject to change without notice
