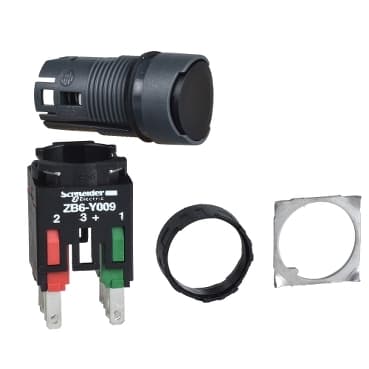

Product Model
XB6AA22B
Selling Points
- 1IP65 Protection: Withstands harsh environments and ensures reliable operation in all types of applications.
- 2Spring Return and Latching Functions: Provides safe and efficient operation with spring return and latching functions.
- 3Certified for Safety: Meets UL, CSA, and CCC standards for electrical safety.
- 4Wide Operating Temperature Range: Operates effectively from -40°C to 70°C, making it suitable for various industrial settings.
- 5Durable Design: Constructed with high-quality materials for long-lasting performance and minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete push-button |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Black flush, unmarked | Contacts type and composition | 1 NC |
Contact operation | Slow-break | Connections - terminals | Faston connectors 2.8 x 0.5 mm |
CAD overall width | 0.7 in (18 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 2.2 in (57 mm) | Terminals description ISO n°1 | (21-22)NC |
Net Weight | 0.042 lb(US) (0.019 kg) | Operating position | Any position |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.08 in (2 mm) NC changing electrical state)<br />0.1 in (3.5 mm) total travel) |
Operating force | 4.5 N NC changing electrical state | Mechanical durability | 2000000 cycles |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG |
[Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
[Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | UL 508<br />JIS C 4520<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />JIS C 852 |
Product Certifications | GOST<br />UL<br />CSA<br />CCC | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
