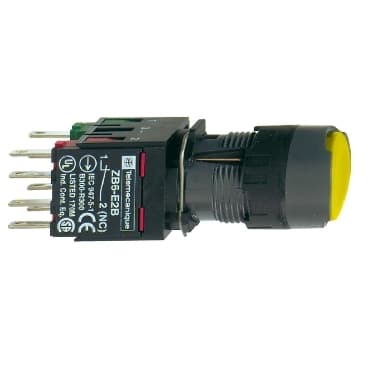

Product Model
XB6AF5B5B
Selling Points
- 1High-Performance Operation: Designed for reliable operation in 12-24V AC/DC environments.
- 2Durable Construction: Built with a robust design to withstand industrial conditions.
- 3Easy Installation: Simple mounting diameter of 16 mm for effortless integration.
- 4Latching Operator: Features a latching operator profile for secure switching.
- 5Illuminated Design: Complete illuminated push-button for enhanced visibility in dark environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete illuminated push-button |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | latching |
Operator profile | Yellow flush, unmarked | Contacts type and composition | 1 NO + 1 NC |
Contact operation | Slow-break | Connections - terminals | Faston connectors 2.8 x 0.5 mm |
Light source | LED | Bulb base | Integral LED |
[Us] rated supply voltage | 12...24 V AC/DC | Height | 0.7 in (18 mm) |
Width | 0.7 in (18 mm) | Depth | 2.2 in (57 mm) |
Terminals description ISO n°1 | (21-22)NC<br />(13-14)NO | Net Weight | 0.055 lb(US) (0.025 kg) |
Operating position | Any position | Positive opening | With EN/IEC 60947-5-1 appendix K |
Operating travel | 0.04 in (1 mm) NO changing electrical state)<br />0.08 in (2 mm) NC changing electrical state)<br />0.1 in (3.5 mm) total travel) | Operating force | 3.5 N NO changing electrical state<br />4.5 N NC changing electrical state |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG |
[Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
[Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Signalling type | Steady |
Supply voltage limits | 6…30 V AC/DC | current consumption | 15 mA |
Surge withstand | 1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />JIS C 852<br />JIS C 4520<br />EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-5 |
Product Certifications | UL<br />GOST<br />CCC<br />CSA | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
