Product Model

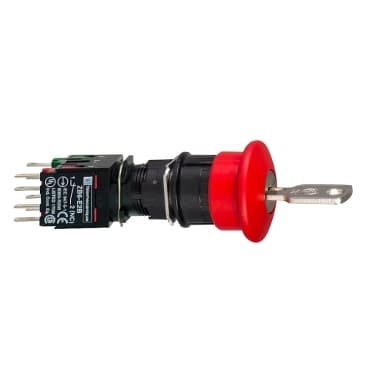

XB6AS9342B
Selling Points
- 1Compact size for easy installation.
- 2Latching turn-to-release mechanism ensures safety.
- 3Compatible with 16mm plastic modular design.
- 4Red pushbutton with 30mm trigger for clear visibility.
- 5Solder tab or pins for PCB connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete emergency stop push-button |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Round | Type of operator | trigger action |
Reset | Key release | Operator profile | Red mushroom Ø 30 mm, unmarked |
Contacts type and composition | 1 NO + 1 NC | Contact operation | Slow-break |
Connections - terminals | Faston connectors 2.8 x 0.5 mm | Height | 1.2 in (30 mm) |
Width | 1.2 in (30 mm) | Depth | 3.8 in (97 mm) |
Terminals description ISO n°1 | (21-22)NC<br />(13-14)NO | Net Weight | 0.123 lb(US) (0.056 kg) |
Operating position | Any position | Type of Keylock | Ronis 200 |
Contacts usage | Standard | Positive opening | With EN/IEC 60947-5-1 appendix K |
Operating travel | 0.04 in (1 mm) NC changing electrical state)<br />0.08 in (2 mm) NO changing electrical state)<br />0.1 in (3.5 mm) total travel) | Operating force | 3.5 N NO changing electrical state<br />4.5 N NC changing electrical state |
Mechanical durability | 100000 cycles | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 6 A cartridge fuse gG | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4 |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94 |
Standards | EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />EN/IEC 60204-1<br />EN/ISO 13850<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C 852<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />UL<br />GOST<br />CCC |
Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
