Product Model

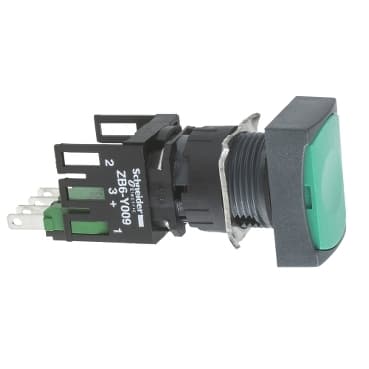

XB6DA35B
Selling Points
- 1High-quality, durable construction for long-lasting performance.
- 2Advanced circuit protection to ensure safe and reliable operation.
- 3Compact design with easy installation and maintenance.
- 4Supports a wide range of power configurations for versatile use.
- 5Meets or exceeds industry standards for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete push-button |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | Type of operator | spring return |
Operator profile | Green flush, unmarked | Contacts type and composition | 1 NO + 1 NC |
Contact operation | Slow-break | Connections - terminals | Faston connectors 2.8 x 0.5 mm |
CAD overall width | 0.9 in (24 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 2.2 in (57 mm) | Terminals description ISO n°1 | (13-14)NO<br />(21-22)NC |
Net Weight | 0.049 lb(US) (0.022 kg) | Operating position | Any position |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.04 in (1 mm) NO changing electrical state)<br />0.08 in (2 mm) NC changing electrical state)<br />0.1 in (3.5 mm) total travel) |
Operating force | 3.5 N NO changing electrical state<br />4.5 N NC changing electrical state | Mechanical durability | 2000000 cycles |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG |
[Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
[Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | EN/IEC 60947-1<br />JIS C 852<br />EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />JIS C 4520 |
Product Certifications | CSA<br />CCC<br />UL<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
