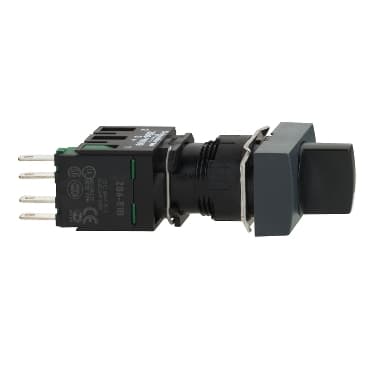

Product Model
XB6DD233B
Selling Points
- 1Robust Construction: Built to withstand 500,000 cycles for long-lasting performance.
- 2Versatile Application: Suitable for various electrical control applications with 240VAC and 250VDC voltage ratings.
- 3Easy Installation: Equipped with Faston connectors 2.8 x 0.5 mm for straightforward integration.
- 4High-Quality Contacts: Silver alloy (Ag/Ni) contacts ensure reliable and durable electrical connections.
- 5Compact Design: Black rectangular selector switch with a 60° angle of throw for precise control in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete selector switch |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Operating position | Any position | Shape of signaling unit head | Round |
Type of operator | stay put | Operator profile | Black standard handle |
Operator position information | 3 positions 60° | Contacts type and composition | 2 NO |
Contact operation | Slow-break | Height | 0.7 in (18 mm) |
Width | 0.9 in (24 mm) | Depth | 2.7 in (68 mm) |
Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.053 lb(US) (0.024 kg) |
Positive opening | With EN/IEC 60947-5-1 appendix K | Mechanical durability | 500000 cycles |
Connections - terminals | Faston connectors 2.8 x 0.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 6 A cartridge fuse gG | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1<br />1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1<br />0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4 |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 |
Standards | CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />JIS C 852<br />JIS C8201-1 | Product Certifications | CCC<br />UL<br />GOST<br />CSA |
Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
