Product Model

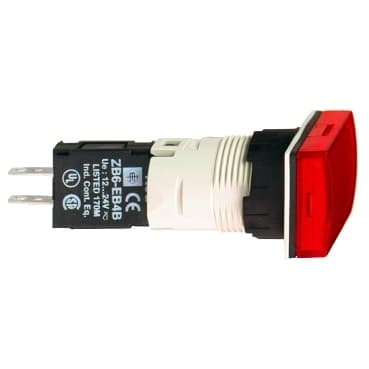

XB6DV4BB
Selling Points
- 1Compact and rectangular design for easy installation.
- 2Integral LED for reliable and energy-efficient lighting.
- 3Compatible with 12-24V power supply for versatile use.
- 4Solder tab or pins for secure PCB connection.
- 5Durable plastic construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete pilot light |
Device short name | XB6 | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 1 |
Shape of signaling unit head | Rectangular | cap/operator or lens colour | Red |
Light source | LED | Bulb base | Integral LED |
Light block supply | Direct | [Us] rated supply voltage | 12...24 V AC/DC |
Height | 0.7 in (18 mm) | Width | 0.9 in (24 mm) |
Depth | 2.2 in (57 mm) | Terminals description ISO n°1 | (+ -)PL |
Net Weight | 0.033 lb(US) (0.015 kg) | Operating position | Any position |
Connections - terminals | Faston connectors 2.8 x 0.5 mm | [Ui] rated insulation voltage | 250 V 2)EN/IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | Signalling type | Steady |
Supply voltage limits | 6…30 V AC/DC | current consumption | 15 mA |
Surge withstand | 1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94 | Standards | JIS C 852<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | CCC<br />CSA<br />GOST<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B EN 55011 |
Specifications may be subject to change without notice
