XB6DV5GB

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

36244

In Stock
Last updated: 2025/5/7
View Specifications

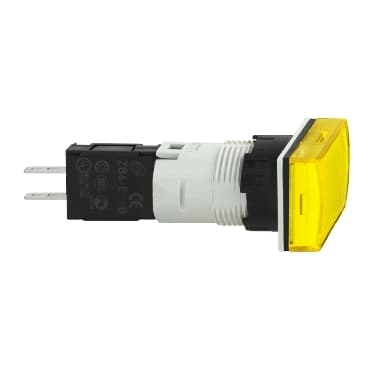

schneider XB6DV5GB

Selling Points

  • 1The XB6DV5GB has a small footprint with a diameter of 0.63 in (16 mm) and a height of 0.71 in (18 mm).
  • 2Equipped with a yellow integral LED for clear visibility in various lighting conditions.
  • 3Compatible with 48-120V AC/DC, making it versatile for different electrical systems.
  • 4Made from plastic with IP65 and NEMA 4X protection against dust and water, ensuring long-lasting performance.
  • 5Consumes only 15 mA of current, making it an energy-efficient option for your applications.
Product Details
XB6DV5GB
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Complete pilot light
Device short name
XB6
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
1
Shape of signaling unit head
Rectangular
cap/operator or lens colour
Yellow
Light source
LED
Bulb base
Integral LED
Light block supply
Direct
[Us] rated supply voltage
48...120 V AC/DC
Height
0.7 in (18 mm)
Width
0.9 in (24 mm)
Depth
2.2 in (57 mm)
Terminals description ISO n°1
(X1-X2)PL
Net Weight
0.033 lb(US) (0.015 kg)
Operating position
Any position
Connections - terminals
Faston connectors 2.8 x 0.5 mm
[Ui] rated insulation voltage
250 V 2)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1
Signalling type
Steady
Supply voltage limits
6…30 V AC/DC
current consumption
15 mA
Surge withstand
1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
NEMA degree of protection
NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 13 CSA C22.2 No 94<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94
Standards
UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />JIS C 852<br />EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
CSA<br />GOST<br />UL<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B EN 55011
