Product Model

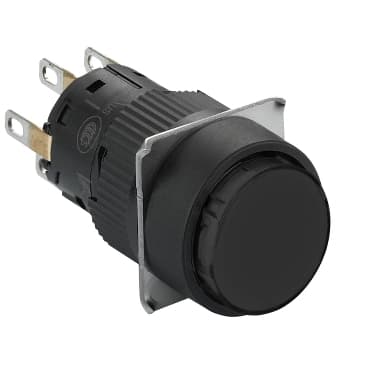

XB6EAA22P
Selling Points
- 1Compact Design: 16mm panel cutout diameter for seamless integration.
- 2High Reliability: DPDT configuration ensures robust switching performance.
- 3Durable Construction: IP65 rating for protection against dust and water.
- 4Easy Installation: Quick connect and solder terminals for quick setup.
- 5Black Actuator: Flush spring return actuator with a black cap for a sleek appearance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Monolithic push-button |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Black flush | Contacts type and composition | 2 C/O |
Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
Contacts material | Gold-flashed silver | Net Weight | 0.013 lb(US) (0.006 kg) |
Overvoltage category | II IEC 60536 | Operating position | Any position |
marking | CE | Mechanical durability | 1000000 cycles |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Contact resistance | 50 mOhm 1/6 V |
Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
[Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | JIS C 852<br />JIS C 4520<br />UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1 |
Product Certifications | cURus<br />CCC | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
