Product Model

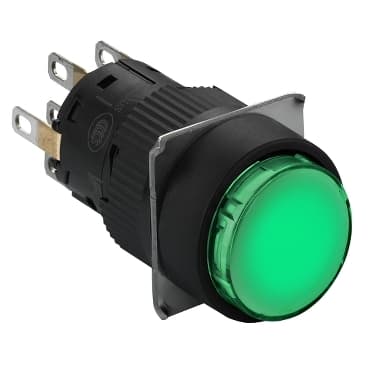

XB6EAF3J2P
Selling Points
- 1Constructed with durable plastic and gold-flashed silver contacts for long-lasting performance.
- 2Meets UL 508, CSA C22.2 No. 14, IEC 60947-1, and JIS C 4520 standards for safety and reliability.
- 3Operates in any position with a snap-action mechanism, ensuring consistent performance.
- 4Consumes only 20 mA at 12 VDC, making it energy-efficient for various applications.
- 5Includes overvoltage protection and short-circuit protection for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Illuminated monolithic push-button |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Round | Type of operator | latching |
Operator profile | Green flush | Contacts type and composition | 2 C/O |
Contact operation | Snap action | Connections - terminals | Faston connectors 2.8 x 0.5 mm<br />Soldered connectors |
Contacts material | Gold-flashed silver | Light source | Integral LED |
[Us] rated supply voltage | 12 V DC polarised | Height | 0.7 in (18 mm) |
Width | 0.7 in (18 mm) | Depth | 1.6 in (40 mm) |
Terminals description ISO n°1 | (13-14-11-12)OF<br />(23-24-21-22)OF | Net Weight | 0.013 lb(US) (0.006 kg) |
Overvoltage category | II IEC 60536 | Operating position | Any position |
marking | CE | Operating force | 1.3 N C/O changing electrical state |
Mechanical durability | 250000 cycles | Short-circuit protection | 3 A cartridge fuse gG |
[Ith] conventional free air thermal current | 3 A | [Ui] rated insulation voltage | 250 V 2)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 | Electrical durability | 50000 cycles, DC-12, 1 A 30 V IEC 60947-5-1 appendix C<br />50000 cycles, AC-12, 0.5 A 125 V IEC 60947-5-1 appendix C<br />50000 cycles, AC-12, 0.5 A 250 V IEC 60947-5-1 appendix C |
Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 | Signalling type | Steady |
current consumption | 20 mA | Service life | 50000 h |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />JIS C 4520<br />IEC 60947-1<br />JIS C 852 |
Product Certifications | cURus<br />CCC | Vibration resistance | 1 mm 5…55 Hz)IEC 60068-2-6<br />9 gn 5…55 Hz)IEC 60068-2-6 |
Shock resistance | 20 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV conforming to IEC 61000-4-2 |
