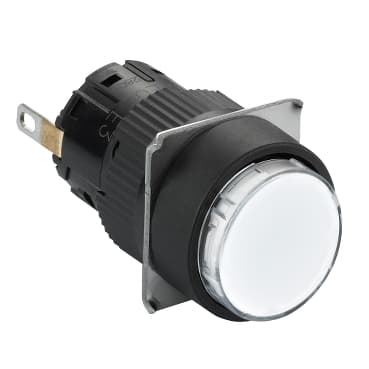

Product Model
XB6EAV1JP
Selling Points
- 1IP65 Protection: Durable and resistant to dust and water.
- 2White Integral LED: Bright and energy-efficient lighting solution.
- 3Polarized 12VDC Connector: Easy installation and reliable operation.
- 4Compact Ø16mm Design: Perfect for tight spaces and modern installations.
- 5Schneider Electric Quality: Trusted brand with high standards in electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Monolithic pilot light |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Round | cap/operator or lens colour | White |
Light source | Integral LED | Light block supply | Direct |
[Us] rated supply voltage | 12 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
Overvoltage category | II IEC 60536 | Operating position | Any position |
marking | CE | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 | Signalling type | Steady |
current consumption | 10 mA | Service life | 30000 h |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C 852<br />IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | cURus<br />CCC | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
