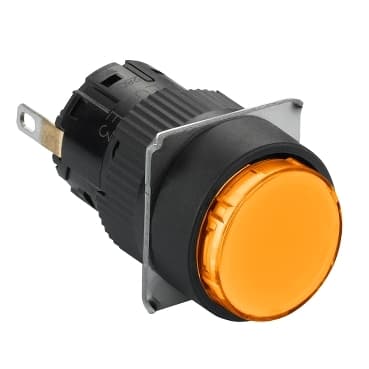

Schneider Electric XB6EAV8BP Monolithic Pilot Light

Selling Points

1IP65 Rating for Durability: Designed to withstand harsh environments with its IP65 rating.
2Integral LED for Brightness: Equipped with an integral LED for consistent and reliable illumination.
324VDC Polarised Connector: Compatible with 24VDC polarised connectors for easy integration.
4Round Ø 16 Design: Compact round design (Ø 16) perfect for various applications.
52-Year Warranty: Backed by a 2-year warranty from Schneider Electric for peace of mind.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XB6E	Product or Component Type	Monolithic pilot light
Device short name	XB6E	Bezel material	Plastic
Mounting diameter	0.6 in (16 mm)	Sale per indivisible quantity	5
Shape of signaling unit head	Round	cap/operator or lens colour	Orange
Light source	Integral LED	Light block supply	Direct
[Us] rated supply voltage	24 V DC polarised	Net Weight	0.013 lb(US) (0.006 kg)
Overvoltage category	II IEC 60536	Operating position	Any position
marking	CE	Connections - terminals	Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket
Tightening torque	5.3…8.9 lbf.in (0.6…1 N.m)	[Ui] rated insulation voltage	250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage	2.5 kV IEC 60947-1	Signalling type	Steady
current consumption	10 mA	Service life	30000 h
Ambient Air Temperature for Storage	-40…158 °F (-40…70 °C)	Ambient Air Temperature for Operation	14…131 °F (-10…55 °C)
IP degree of protection	IP65 IEC 60529	Standards	JIS C8201-5-1<br />JIS C 852<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1
Product Certifications	CCC<br />cURus	Vibration resistance	1 mm 10…55 Hz)IEC 60068-2-6
Shock resistance	10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
