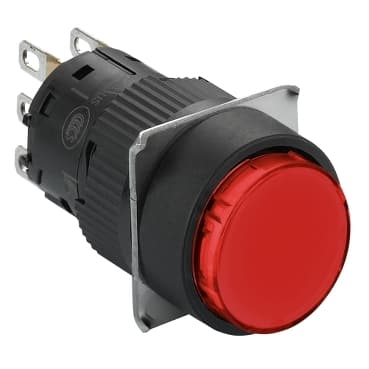

Product Model
XB6EAW4B1P
Selling Points
- 1High-Quality Design: Durable construction with IP65 protection for use in harsh environments.
- 2Reliable Performance: 24V DC operation ensures consistent functionality.
- 3Versatile Applications: Suitable for transportation, laboratories, medical instrumentation, control boards, surveillance rooms, and alarms.
- 4Easy Installation: Simple setup with a round red flush design for easy integration.
- 5Environmental Commitment: Part of Schneider Electric's "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Illuminated monolithic push-button |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Round | Type of operator | spring return |
Operator profile | Red flush | Contacts type and composition | 1 C/O |
Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
Contacts material | Gold-flashed silver | Light source | Integral LED |
[Us] rated supply voltage | 24 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
Operating position | Any position | marking | CE |
Mechanical durability | 1000000 cycles | Contact resistance | 50 mOhm 1/6 V |
Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
[Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
Signalling type | Steady | current consumption | 10 mA |
Service life | 30000 h | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) | IP degree of protection | IP65 IEC 60529 |
Standards | IEC 60947-1<br />IEC 60947-5-1<br />UL 508<br />JIS C 4520<br />CSA C22.2 No 14<br />JIS C 852 | Product Certifications | cURus<br />CCC |
Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
