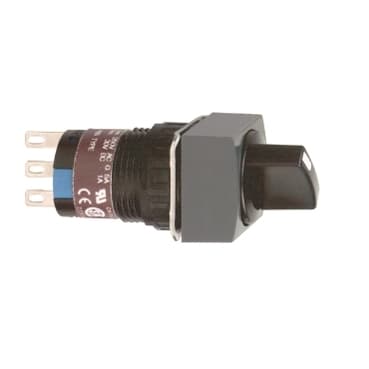

Product Model
XB6ECD232P
Selling Points
- 1High-Quality Construction: Built with durable plastic and gold-flashed silver contacts for long-lasting performance.
- 2IP65 Protection: Ensures the switch operates in harsh environments with excellent dust and water resistance.
- 3Versatile Operation: Offers 3 maintained positions with 2 C/O contacts, suitable for various industrial applications.
- 4Mechanical Durability: Designed to withstand 250,000 operating cycles, ensuring reliability in demanding conditions.
- 5Compliant with Standards: Meets international standards including IEC 60947-1, IEC 60947-5-1, and UL 508 for safety and performance assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Monolithic selector switch |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Square | Type of operator | stay put |
Operator profile | Black standard handle | Operator position information | 3 positions |
Contacts type and composition | 2 C/O | Contact operation | Snap action |
Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket | Contacts material | Gold-flashed silver |
Net Weight | 0.02 lb(US) (0.01 kg) | Overvoltage category | II IEC 60536 |
marking | CE | Mechanical durability | 250000 cycles |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Contact resistance | 50 mOhm 1/6 V |
Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
[Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C 852<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 |
Product Certifications | cURus<br />CCC | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
