schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

XB6ECG221P

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

36264

In Stock
Last updated: 2025/5/7
View Specifications

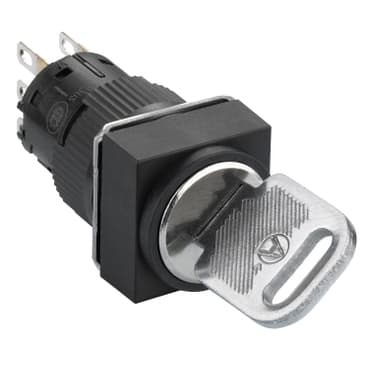

schneider XB6ECG221P

Selling Points

  • 1Compact Design: Ø16mm projecting keylock for space-efficient installations.
  • 2Durable Construction: Built to withstand heavy use in industrial settings.
  • 3Easy Operation: Simple 2-position switch with clear NO/NC indication.
  • 4Versatile Usage: Suitable for a wide range of applications, including control panels and machinery.
  • 52-Year Warranty: Backed by a comprehensive 2-year warranty for peace of mind.
Product Details
XB6ECG221P
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6E
Product or Component Type
Monolithic selector switch
Device short name
XB6E
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
5
Shape of signaling unit head
Square
Type of operator
stay put
Operator profile
key switch
Operator position information
2 positions
Key number
132
Key withdrawal position
In any position
Contacts type and composition
1 C/O
Contact operation
Snap action
Connections - terminals
Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket
Contacts material
Gold-flashed silver
Net Weight
0.04 lb(US) (0.02 kg)
Overvoltage category
II IEC 60536
marking
CE
Mechanical durability
250000 cycles
Tightening torque
5.3…8.9 lbf.in (0.6…1 N.m)
Contact resistance
50 mOhm 1/6 V
Short-circuit protection
2 A cartridge fuse gG
[Ith] conventional free air thermal current
3 A fast connector socket)<br />5 A
[Ie] rated operational current
1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1
Electrical durability
100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
14…131 °F (-10…55 °C)
IP degree of protection
IP65 IEC 60529
Standards
IEC 60947-5-1<br />JIS C 852<br />IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
CCC<br />cURus
Vibration resistance
1 mm 10…55 Hz)IEC 60068-2-6
Shock resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
