XB6ECW1J1P

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

36281

In Stock
Last updated: 2025/5/7
View Specifications

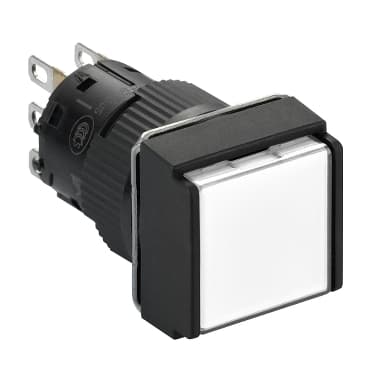

schneider XB6ECW1J1P

Selling Points

  • 1High-Quality Illumination: The XB6ECW1J1P features a white illuminated pushbutton for clear visibility in any environment.
  • 2Durable Design: Constructed with a robust square shape and flush spring return mechanism for long-lasting performance.
  • 3Easy Installation: Compatible with 12V DC polarization, making it simple to integrate into various control systems.
  • 4Reliable Operation: Ensures consistent operation with a single pole, single throw (1CO) configuration.
  • 52-Year Warranty: Backed by a 2-year warranty from Schneider Electric for added peace of mind.
Product Details
XB6ECW1J1P
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6E
Product or Component Type
Illuminated monolithic push-button
Device short name
XB6E
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
5
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
White flush
Contacts type and composition
1 C/O
Contact operation
Snap action
Connections - terminals
Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket
Contacts material
Gold-flashed silver
Light source
Integral LED
[Us] rated supply voltage
12 V DC polarised
Net Weight
0.013 lb(US) (0.006 kg)
Operating position
Any position
marking
CE
Mechanical durability
1000000 cycles
Contact resistance
50 mOhm 1/6 V
Short-circuit protection
2 A cartridge fuse gG
[Ith] conventional free air thermal current
3 A fast connector socket)<br />5 A
[Ie] rated operational current
1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1
Electrical durability
100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
Signalling type
Steady
current consumption
10 mA
Service life
30000 h
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
14…131 °F (-10…55 °C)
IP degree of protection
IP65 IEC 60529
Standards
UL 508<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C 4520<br />JIS C 852<br />IEC 60947-5-1
Product Certifications
CCC<br />cURus
Vibration resistance
1 mm 10…55 Hz)IEC 60068-2-6
Shock resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
