XB6ECW3B2P

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

36284

In Stock
Last updated: 2025/5/7
View Specifications

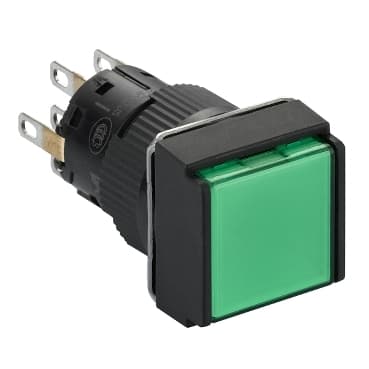

schneider XB6ECW3B2P

Selling Points

  • 1High-Quality Construction: Made with durable plastic bezel and flush actuator.
  • 2Illuminated Functionality: Integral LED lamp for enhanced visibility.
  • 3Versatile Contact Configuration: 2NO-2NC contact configuration for reliable operation.
  • 4Durable Enclosure: NEMA 4/4X/13/IP65 rating for harsh environments.
  • 5Easy Installation: Simple to install with fast connector socket connection.
Product Details
XB6ECW3B2P
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6E
Product or Component Type
Illuminated monolithic push-button
Device short name
XB6E
Bezel material
Plastic
Mounting diameter
0.6 in (16 mm)
Sale per indivisible quantity
5
Shape of signaling unit head
Square
Type of operator
spring return
Operator profile
Green flush
Contacts type and composition
2 C/O
Contact operation
Snap action
Connections - terminals
Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket
Contacts material
Gold-flashed silver
Light source
Integral LED
[Us] rated supply voltage
24 V DC polarised
Net Weight
0.013 lb(US) (0.006 kg)
Operating position
Any position
marking
CE
Mechanical durability
1000000 cycles
Contact resistance
50 mOhm 1/6 V
Short-circuit protection
2 A cartridge fuse gG
[Ith] conventional free air thermal current
3 A fast connector socket)<br />5 A
[Ie] rated operational current
1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1
Electrical durability
100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
Signalling type
Steady
current consumption
10 mA
Service life
30000 h
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
14…131 °F (-10…55 °C)
IP degree of protection
IP65 IEC 60529
Standards
IEC 60947-1<br />IEC 60947-5-1<br />UL 508<br />JIS C 852<br />CSA C22.2 No 14<br />JIS C 4520
Product Certifications
CCC<br />cURus
Vibration resistance
1 mm 10…55 Hz)IEC 60068-2-6
Shock resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
