Product Model

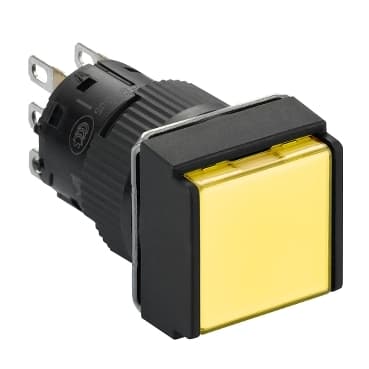

XB6ECW5B1P
Selling Points
- 1The XB6ECW5B1P features an illuminated monolithic pushbutton with an integral LED for clear visibility.
- 2Equipped with a spring-return operator, ensuring consistent and reliable operation.
- 3Compatible with 24 VDC polarized systems, offering efficient and safe operation.
- 4Designed to withstand 1,000,000 cycles of mechanical durability and 100,000 cycles of electrical durability.
- 5Meets international safety standards including UL 508, IEC 60947-5-1, and CSA C22.2 No. 14.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Illuminated monolithic push-button |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Square | Type of operator | spring return |
Operator profile | Yellow flush | Contacts type and composition | 1 C/O |
Contact operation | Snap action | Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket |
Contacts material | Gold-flashed silver | Light source | Integral LED |
[Us] rated supply voltage | 24 V DC polarised | Net Weight | 0.013 lb(US) (0.006 kg) |
Operating position | Any position | marking | CE |
Mechanical durability | 1000000 cycles | Contact resistance | 50 mOhm 1/6 V |
Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
[Ie] rated operational current | 1.5 A 120 V, AC-12 EN/IEC 60947-5-1<br />1 A 240 V, AC-12 EN/IEC 60947-5-1<br />1 A 24 V, DC-12 EN/IEC 60947-5-1<br />0.7 A 24 V, DC-13 EN/IEC 60947-5-1<br />0.2 A 125 V, DC-12 EN/IEC 60947-5-1<br />0.15 A 125 V, DC-13 EN/IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C |
Signalling type | Steady | current consumption | 10 mA |
Service life | 30000 h | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) | IP degree of protection | IP65 IEC 60529 |
Standards | UL 508<br />JIS C 852<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 4520<br />IEC 60947-1 | Product Certifications | CCC<br />cURus |
Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
