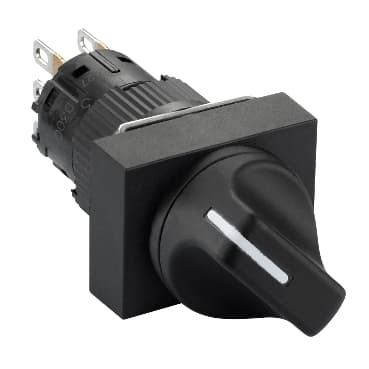

Product Model
XB6EDD221P
Selling Points
- 1High Mechanical Durability: Withstands up to 250,000 cycles, ensuring long-lasting performance.
- 2Snap Action Contacts: Provides quick and precise switching operation.
- 3IP65 Protection: Designed to withstand harsh environments with an IP65 rating.
- 4Versatile Power Handling: Supports AC and DC voltages, including 120V, 240V, and 24V.
- 5Compliant with International Standards: Meets CSA C22.2 No 14, JIS C 852, UL 508, and IEC 60947-5-1 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Monolithic selector switch |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Sale per indivisible quantity | 5 |
Shape of signaling unit head | Rectangular | Type of operator | stay put |
Operator profile | Black standard handle | Operator position information | 2 positions |
Contacts type and composition | 1 C/O | Contact operation | Snap action |
Connections - terminals | Insulated faston 2.8 x 0.5 mm<br />Solder terminal <= 0.75 mm² AWG 19<br />Fast connector socket | Contacts material | Gold-flashed silver |
Net Weight | 0.02 lb(US) (0.01 kg) | Overvoltage category | II IEC 60536 |
marking | CE | Mechanical durability | 250000 cycles |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Contact resistance | 50 mOhm 1/6 V |
Short-circuit protection | 2 A cartridge fuse gG | [Ith] conventional free air thermal current | 3 A fast connector socket)<br />5 A |
[Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1<br />1 A 240 V, AC-12 IEC 60947-5-1<br />0.7 A 240 V, AC-13 IEC 60947-5-1<br />1 A 120 V, AC-13 IEC 60947-5-1<br />1 A 24 V, DC-12 IEC 60947-5-1<br />0.7 A 24 V, DC-13 IEC 60947-5-1<br />0.2 A 125 V, DC-12 IEC 60947-5-1<br />0.15 A 125 V, DC-13 IEC 60947-5-1 | Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | CSA C22.2 No 14<br />JIS C 852<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-1<br />JIS C8201-1 |
Product Certifications | CCC<br />cURus | Vibration resistance | 1 mm 10…55 Hz)IEC 60068-2-6 |
Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
