Product Model

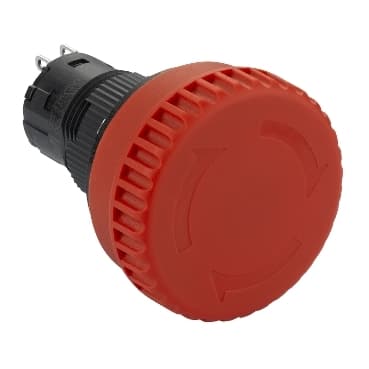

XB6ETN521P
Selling Points
- 1Compact size with 16mm diameter, suitable for space-constrained applications.
- 2Features 2NC slow break contacts for reliable operation.
- 3IP65 rating ensures impact, dust, water, and vibration resistance.
- 4Trigger action with turn/pull to release mushroom head for easy operation.
- 5Compatible with 120 VAC, 240 VAC, and 24 VDC, with various current ratings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6E | Product or Component Type | Complete non-illuminated mushroom head push-button |
Device short name | XB6E | Bezel material | Plastic |
Mounting diameter | 0.6 in (16 mm) | Shape of signaling unit head | Round |
Type of operator | trigger action | Reset | Pull to release<br />Turn to release |
Operator profile | Red mushroom Ø 32 mm | Contacts type and composition | 2 NC |
Connections - terminals | Solder terminal <= 0.75 mm² AWG 19 | Net Weight | 0.0428 lb(US) (0.0194 kg) |
marking | CE | Mechanical durability | 100000 cycles |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) | Short-circuit protection | 6 A fuse gG IEC 60269 |
[Ith] conventional free air thermal current | 5 A | [Ui] rated insulation voltage | 250 V 3) |
Insulation resistance | < 100 MOhm | [Uimp] rated impulse withstand voltage | 2.5 kV |
[Ie] rated operational current | 1.5 A 120 V, AC-12, C300 IEC 60947-5-1<br />0.3 A 120 V, AC-15, C300 IEC 60947-5-1<br />1 A 240 V, AC-12, C300 IEC 60947-5-1<br />0.3 A 240 V, AC-15, C300 IEC 60947-5-1<br />1 A 24 V, DC-12, R300 IEC 60947-5-1<br />0.7 A 24 V, DC-13, R300 IEC 60947-5-1<br />0.2 A 125 V, DC-12, R300 IEC 60947-5-1<br />0.15 A 125 V, DC-13, R300 IEC 60947-5-1 | Electrical durability | 1000000 cycles<br />50000 cycles, DC-13 |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
IP degree of protection | IP65 IEC 60529 | Standards | IEC 60947-5-5<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />GB 14048.5<br />IEC 60947-5-1<br />JIS C8201-1 |
Product Certifications | UR<br />CCC<br />TÜV | Vibration resistance | +/- 0.7 mm 10…500 Hz) |
Shock resistance | 500 m/s²mechanical durability |
