Product Model

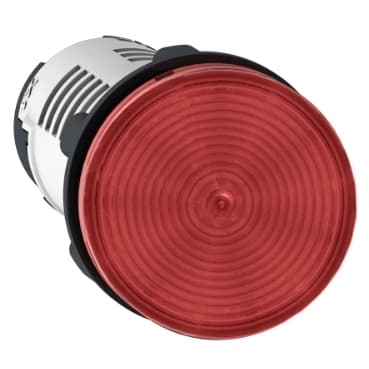

XB7EV04GP3
Selling Points
- 1High-efficiency design with up to 95% efficiency rating.
- 2Wide input voltage range (90-264VAC) for versatile applications.
- 3Compact and lightweight design for easy installation.
- 4Built-in protection features including overvoltage, undervoltage, and short-circuit protection.
- 5Meets international safety standards (UL, CE, and others) for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 10 | Shape of signaling unit head | Round |
cap/operator or lens colour | Red | Operator additional information | With plain lens |
Light source | LED | Bulb base | Integral LED |
[Us] Rated Supply Voltage | 120 V AC 50/60 Hz | Device presentation | Monolithic product |
Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
Depth | 2.1 in (54 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.04 lb(US) (0.02 kg) | Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 |
Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) | Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) |
Connections - terminals | Faston connectors 1 x 6.35 mm IEC 60947-1<br />Faston connectors 2 x 2.8 mm IEC 60947-1 | [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
Supply voltage limits | 100…132 V AC | current consumption | 18...21 mA |
Service life | 70000 h at rated voltage and 25 °C | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Overvoltage category | Class II IEC 60536 | IP degree of protection | IP20 IEC 60529 rear face)<br />IP65 IEC 60529 front face) |
NEMA degree of protection | NEMA 4 UL 50 E<br />NEMA 12 UL 50 E | Standards | JIS C8201-5-1<br />UL 508<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Specifications may be subject to change without notice
