Product Model

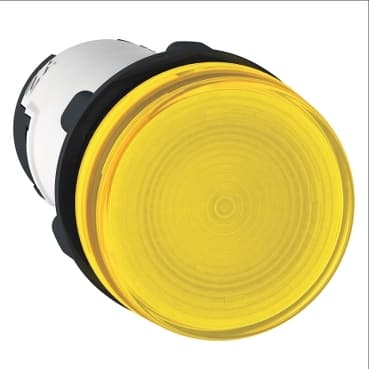

XB7EV75P
Selling Points
- 1The XB7EV75P features a steady, incandescent light source with a BA9s bulb base.
- 2Made from high-quality materials, it is impact, dust, and water resistant with an IP54 rating.
- 3Equipped with screw clamp terminals for simple and secure connections.
- 4Meets IEC 60947-1 and UL 508 standards, ensuring reliability and safety.
- 5Packaged without single-use plastics, aligning with Schneider Electric's commitment to sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB7 | Product or Component Type | Pilot light |
Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 10 | Operator additional information | With plain lens |
Light source | Incandescent | Device presentation | Monolithic product |
Height | 1.1 in (29 mm) | Width | 1.1 in (29 mm) |
Depth | 2.1 in (54 mm) | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.04 lb(US) (0.02 kg) | Overvoltage category | Class II IEC 60536 |
Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 | Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Shape of signaling unit head | Round |
cap/operator or lens colour | Yellow | Connections - terminals | Faston connectors 6.35 x 0.8 mm IEC 60947-1<br />Forked type tag connectors 6.5 mm IEC 60947-1<br />Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
[Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
Signalling type | Steady | Bulb base | BA 9s |
Light block supply | Direct through resistor <2.6 W 130 V | [Us] rated supply voltage | 230 V AC 50/60 Hz |
Supply voltage limits | 195…264 V AC | Service life | 2000 h at rated voltage and 25 °C |
compatibility code | XB7 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
IP degree of protection | IP20 IEC 60529 rear face)<br />IP54 IEC 60529 front face) | NEMA degree of protection | NEMA 12 |
Standards | JIS C8201-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic compatibility | Disturbing field emission class B conforming to IEC 55011 |
Specifications may be subject to change without notice
