Product Model

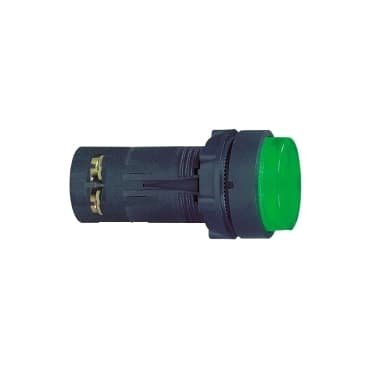

XB7EW3361P
Selling Points
- 1Green illuminated for enhanced visibility.
- 2Ø 22 spring return design for reliable operation.
- 3Rated for 250 V, ensuring high voltage compatibility.
- 41 NO contact configuration for precise control.
- 5Compact design with a height of 29 mm and width of 29 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB7 | Product or Component Type | Illuminated push-button |
Device short name | XB7 | Mounting diameter | 0.9 in (22 mm) |
Sale per indivisible quantity | 10 | Light source | Incandescent (bulb not included) |
Device presentation | Monolithic product | Height | 1.1 in (29 mm) |
Width | 1.1 in (29 mm) | Depth | 2.8 in (71 mm) |
Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.04 lb(US) (0.02 kg) |
Device mounting | Fixing hole 0.9 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-1 | Fixing center | >= 30 x 40 mm support panel) metal 0.04…0.2 in (1…6 mm)<br />>= 30 x 40 mm support panel) plastic 0.08…0.2 in (2…6 mm) |
Fixing mode | Fixing nut beneath head 17.7…21.2 lbf.in (2…2.4 N.m) | Shape of signaling unit head | Round |
Type of operator | spring return | Operator profile | Green projecting, unmarked |
Contacts type and composition | 1 NO | Contact operation | Slow-break |
Positive opening | Without | Mechanical durability | 300000 cycles |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1<br />Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
Shape of screw head | Cross JIS No 1<br />Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
[Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 |
[Ie] rated operational current | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1<br />0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1<br />0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 | Electrical durability | 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C |
Electrical reliability | Λ <= 10exp(-6) 17 V 5 mA EN/IEC 60947-5-4 | Signalling type | Steady |
Bulb base | BA 9s | [Us] rated supply voltage | <= 250 V |
Service life | 2000 h at rated voltage and 25 °C | compatibility code | XB7 |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP20 IEC 60529 rear face)<br />IP54 IEC 60529 front face) | NEMA degree of protection | NEMA 12 |
Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Electromagnetic emission | Class B EN 55011 |
Specifications may be subject to change without notice
