schneiderHMI (Terminals and Industrial PC)
Product Model

XBTGC1100T

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

36579

In Stock
Last updated: 2025/5/5
View Specifications

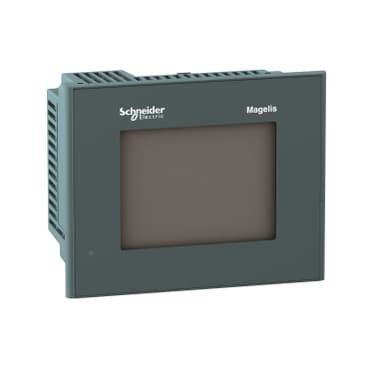

schneider XBTGC1100T

Selling Points

  • 1Features a 3.8" STN LCD with amber or red backlighting and 8 levels of grey, providing clear visibility in various environments.
  • 2Equipped with a touch panel for easy user interaction and control in automation systems.
  • 3Includes 12 digital inputs and 6 digital outputs, all operating at 24V DC, ensuring reliable data transmission.
  • 4Backlight lifespan of up to 50,000 hours with amber and 10,000 hours with red, reducing maintenance needs.
  • 5Measures 104 mm in height, 130 mm in width, and 76.5 mm in depth, making it suitable for various installation scenarios.
Product Details
XBTGC1100T
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Magelis XBT GC, GT/GK with control
Product or Component Type
Small touch HMI controller
Display size
3.8 inch
Display Type
Backlit monochrome STN LCD
Display colour
Amber or red<br />8 levels of grey
Pixel resolution
320 x 240 pixels QVGA
Touch panel
Analogue
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
Enclosure Material
PPT
Backlight lifespan
10000 hours red<br />50000 hours amber
Brightness
8 levels
Contrast
8 levels via touch panel
Character font
Japanese (ANK, Kanji)<br />Korean<br />Chinese (simplified Chinese)<br />ASCII<br />Taiwanese (traditional Chinese)
Inrush current
30 A
Power consumption in W
18 W
Local signalling
1 LED green normal operation
Number of pages
Limited by internal memory capacity
Software Designation
SoMachine
Operating System
Magelis
Processor name
CPU RISC
Processor frequency
131 MHz
Memory description
Application memory 16 MB<br />Back up of data 512 KB
Integrated connection type
1 USB port (V1.1) USB type A<br />Power supply removable screw terminal block
I/O expansion capacity
2 M238 modules
Realtime clock
Built-in
Fixing mode
By 4 screw clips 1.6...5 mm thick panel
marking
CE
Discrete input number
12
Discrete input voltage
24 V
Discrete input voltage type
DC
Number of common point
1I/1O
input voltage limits
20.4...28.8 V
Discrete input logic
Source
Discrete input current
5 mA other I0.i<br />6.5 mA I0.0, I0.2, I0.4, I0.6
Input impedance
3.7 kOhm I0.0, I0.2, I0.4, I0.6<br />4.7 kOhm other I0.i
Filter time
0.5...20 ms at state 0<br />0.5...20 ms at state 1
Isolation between channels
None
Discrete output number
6
Discrete output type
Transistor
Discrete output voltage
24 V
Output voltage limits
20.4...28.8 V
Discrete output logic
Source
Discrete output current
0.2 A
Maximum current per output common
1.2 A
Response time
5 µs at state 0 Q0.0...Q0.3<br />5 µs at state 1 Q0.0...Q0.3<br />500 µs at state 0 other Q0.i<br />500 µs at state 1 other Q0.i
[Ures] residual voltage
0.5 V at state 1
Maximum leakage current
0.1 mA
Short-circuit protection
2.5 A fuse
Height
4.09 in (104 mm)
Width
5.1 in (130 mm)
Depth
3.01 in (76.5 mm)
Net Weight
0.9 lb(US) (0.4 kg)
Immunity to microbreaks
10 ms
Standards
EN 61131-2<br />UL 508<br />UL 1604<br />CSA C22.2 No 14<br />IEC 61000-6-2<br />FCC Class A
Product Certifications
cULus<br />UL class 1 Div2 T4A ou T5<br />CSA<br />C-tick
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel
Shock resistance
147 m/s²IEC 60068-2-27
Vibration resistance
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3

Specifications may be subject to change without notice
