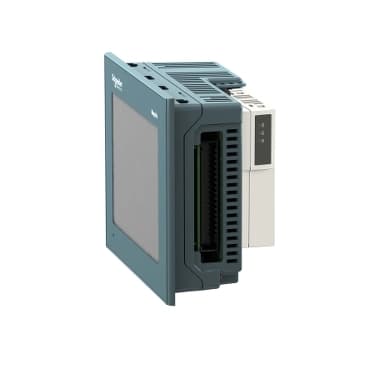

schneider XBTGC2230T

Selling Points

  • 1The XBTGC2230T boasts a 5.7" backlit STN LCD display with 4096 colors, ensuring clear and vibrant visuals.
  • 2Equipped with 16 inputs and 16 outputs, this controller panel offers extensive connectivity options for seamless integration into industrial automation systems.
  • 3Constructed with a durable PPT enclosure, the XBTGC2230T is designed to withstand harsh industrial environments.
  • 4With a power consumption of 27 W, this controller panel is energy-efficient and suitable for long-term operation.
  • 5Compatible with various protocols including Modbus and Modbus TCP/IP, making it versatile for different industrial applications.
Product Details
XBTGC2230T
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Magelis XBT GC, GT/GK with control
Product or Component Type
Small touch HMI controller
Display size
5.7 inch
Display Type
Backlit colour STN LCD
Display colour
4096 colours
Pixel resolution
320 x 240 pixels QVGA
Touch panel
Analogue
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
Enclosure Material
PPT
Backlight lifespan
50000 hours
Brightness
8 levels via touch panel
Contrast
8 levels via touch panel
Character font
Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)<br />ASCII<br />Japanese (ANK, Kanji)<br />Korean
Inrush current
30 A
Power consumption in W
27 W
Local signalling
1 LED green normal operation
Number of pages
Limited by internal memory capacity
Software Designation
SoMachine
Operating System
Magelis
Processor name
CPU RISC
Processor frequency
131 MHz
Memory description
Application memory 16 MB<br />Back up of data 512 KB
Integrated connection type
1 USB port (V1.1) USB type A<br />Power supply removable screw terminal block<br />COM1 serial link male SUB-D 9 <= 115.2 kbits/s RS232C/RS422/RS485<br />1 Ethernet TCP/IP RJ45
I/O expansion capacity
3 M238 modules
Realtime clock
Built-in
Downloadable protocols
Modbus<br />Uni-TE<br />Modbus TCP/IP<br />Third party protocols
Fixing mode
By 4 screw clips 1.6...5 mm thick panel
marking
CE
Discrete input number
16
Discrete input voltage
24 V
Discrete input voltage type
DC
Number of common point
1I/2O
input voltage limits
20.4...28.8 V
Discrete input logic
Source
Discrete input current
5 mA other I0.i<br />6.5 mA I0.0, I0.2, I0.4, I0.6
Input impedance
3.7 kOhm I0.0, I0.2, I0.4, I0.6<br />4.7 kOhm other I0.i
Filter time
0.5...20 ms at state 0<br />0.5...20 ms at state 1
Isolation between channels
None
Discrete output number
16
Discrete output type
Transistor
Discrete output voltage
24 V
Output voltage limits
20.4...28.8 V
Discrete output logic
Source
Discrete output current
0.2 A
Maximum current per output common
1.6 A
Response time
5 µs at state 0 Q0.0...Q0.3<br />5 µs at state 1 Q0.0...Q0.3<br />500 µs at state 0 other Q0.i<br />500 µs at state 1 other Q0.i
[Ures] residual voltage
0.5 V at state 1
Maximum leakage current
0.1 mA
Short-circuit protection
2.5 A fuse
Height
5.3 in (135 mm)
Width
6.6 in (167.4 mm)
Depth
3.06 in (77.6 mm)
Net Weight
2.2 lb(US) (1 kg)
Immunity to microbreaks
3 ms
Standards
EN 61131-2<br />UL 1604<br />FCC Class A<br />CSA C22.2 No 14<br />IEC 61000-6-2<br />UL 508
Product Certifications
cULus<br />CSA<br />C-tick<br />UL class 1 Div2 T4A ou T5
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel
Shock resistance
147 m/s²IEC 60068-2-27
Vibration resistance
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3

Specifications may be subject to change without notice
