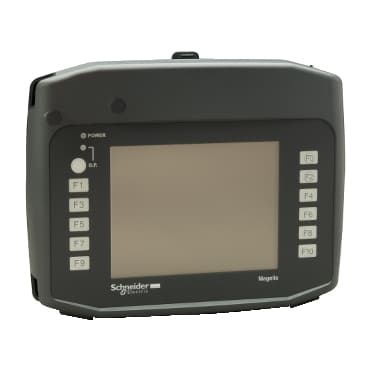

schneider XBTGH2460B

Selling Points

  • 1High-resolution 640x480 VGA display for clear visibility.
  • 2Backlit color TFT LCD with 65536 colors for enhanced readability.
  • 3Touch-sensitive zone with 1024x1024 resolution for precise control.
  • 4Supports multiple languages including Japanese, Chinese, and Korean.
  • 5IP65-rated for durability in harsh environments.
Product Details
XBTGH2460B
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XBTGH
Product or Component Type
Advanced hand-held panel
Display Type
Backlit colour TFT LCD
Display colour
65536 colours
Display Resolution
640 x 480 pixels VGA
Display size
5.7 inch
Control Type
1 enable switch<br />1 key switch
Contacts type and composition
1 NC + 1 NO key switch<br />2 NO enable switch<br />2 NC + 1 NO
Software Type
Configuration software
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Processor frequency
266 MHz
Memory description
512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory
Integrated connection type
1 USB type A master port (V1.1)<br /> 24-pin Faston connector COM1 serial link junction box<br /> 24-pin Faston connector Ethernet TCP/IP junction box<br /> 24-pin Faston connector power supply junction box
Resistance to electrostatic discharge
6 kV IEC 61000-4-2 level 3
Touch sensitive zone
1024 x 1024
Touch panel
Analogue
Backlight lifespan
50000 hours
Brightness
16 levels via touch panel
Character font
Japanese (ANK, Kanji)<br />ASCII (European characters)<br />Korean<br />Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
[Ue] rated operational voltage
24 V DC key switch<br />30 V DC enable switch
Maximum [Ie] rated operational current
0.3 A key switch<br />0.7 A control handle
Inrush current
60 A
Power consumption in W
16.7 W
Number of Operation keys
1 with LED
Number of static function keys
11 with labels
Local signalling
for normal operation or backlighting faulty 1 LED (green or orange)
Downloadable protocols
Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Modbus TCP/IP<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Uni-TE
Realtime clock
Built-in
Data storage equipment
1 Compact Flash card >= 1 GB
Enclosure Material
PPT
marking
CE
Width
8.8 in (224 mm)
Height
6.9 in (174 mm)
Depth
3.4 in (87.1 mm)
Net Weight
2.2 lb(US) (1 kg)
Immunity to microbreaks
5 ms
Standards
IEC 61000-6-2<br />EN 61131-2<br />FCC Class A<br />UL 508
Product Certifications
C-tick<br />cULus
Ambient Air Temperature for Operation
32…104 °F (0…40 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…90 % without condensation
Operating altitude
< 6561.68 ft (2000 m)
IP degree of protection
IP65 IEC 60529
Shock resistance
15 gn 11 ms IEC 60068-2-27
Vibration resistance
1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 level 3
