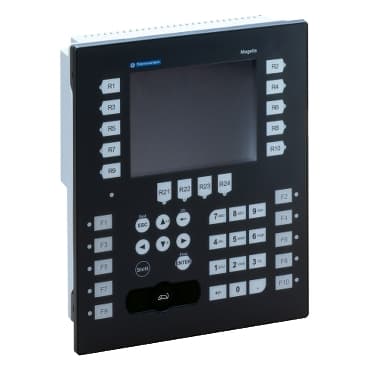

Advanced Touchscreen Panel with Keyboard - Schneider Electric XBTGK2330

Selling Points

1Advanced touchscreen panel with keyboard for seamless operator interaction.
2High-resolution 5.7-inch backlit color TFT LCD display with 65536 colors.
3Robust connectivity via Ethernet (10BASE-T/100BASE-TX) and fieldbus communication cards.
4Built-in real-time clock and alphanumeric keypad for efficient data entry.
5Durable design with aluminum alloy front material and IP65 front panel protection.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XBTGK	Product or Component Type	Advanced touchscreen panel with keyboard
Display Type	Backlit colour TFT LCD	Display colour	65536 colours
Display Resolution	320 x 240 pixels QVGA	Display size	5.7 inch
Software Type	Configuration software	Software Designation	Vijeo Designer
Operating System	Harmony	Processor name	CPU RISC
Processor frequency	133 MHz	Memory description	512 KB SRAM back up of data lithium battery<br />16 MB flash EPROM application memory
Integrated connection type	RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)<br />1 USB type A master port (V1.1) Modicon M340 terminal port communication<br /> male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP	Resistance to electrostatic discharge	4 kV IEC 61000-4-2 level 3
cut-out dimensions	209 (+/- 0.4) x 243 (+/- 0.4) mm	Touch sensitive zone	1024 x 1024
Touch panel	Analogue	Backlight lifespan	50000 hours
Brightness	8 levels via touch panel	Character font	Japanese (ANK, Kanji)<br />Korean<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage	24 V DC	Supply	External source
Supply voltage limits	19.2…28.8 V	Inrush current	30 A
Power consumption in W	26 W	Number of dynamic function keys symb	14 with LED
Number of static function keys	10 with LED and labels	Number of SERVICE keys	8
Number of alphanumeric keys	12	Local signalling	for normal operation or backlighting faulty 1 LED (green or orange)
Number of pages	Limited by internal memory capacity	Downloadable protocols	Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE
Realtime clock	Built-in	Data storage equipment	1 Compact Flash card >= 1 GB
Use of slot	For 1 fieldbus communication card (Device Net, Profibus DP)	Port Ethernet	10BASE-T/100BASE-TX
Product mounting	Flush mounting	Fixing Mode	By 4 screw clamps<br />By 10 spring clips
Front material	Aluminium alloy	Enclosure Material	PPT
marking	CE	Width	8.7 in (220.3 mm)
Height	10.4 in (265 mm)	Depth	2.4 in (60.3 mm)
Immunity to microbreaks	5 ms	Standards	UL 508<br />UL 1604<br />CSA C22.2 No 14<br />IEC 61000-6-2<br />FCC Class A<br />EN 61131-2
Product Certifications	CSA Class 1 Division 2 T4A<br />cULus<br />UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5<br />UL Class 1 Division 2 T5<br />C-tick	Ambient Air Temperature for Operation	32…122 °F (0…50 °C)
Ambient Air Temperature for Storage	-4…140 °F (-20…60 °C)	Relative humidity	0…90 % without condensation
Operating altitude	< 6561.68 ft (2000 m)	IP degree of protection	IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection	NEMA 4X front panel (indoor use)	Shock resistance	15 gn 11 ms IEC 60068-2-27
Vibration resistance	1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6	Resistance to electromagnetic fields	9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients	2 kV IEC 61000-4-4 level 3

Specifications may be subject to change without notice
