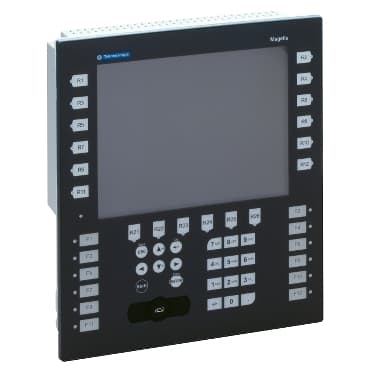

Product Model
XBTGK5330
Selling Points
- 1Advanced touchscreen panel with keyboard for efficient human-machine interaction.
- 2High-resolution 640 x 480 pixels VGA display for clear visuals.
- 3Backlit color TFT LCD with 65536 colors for vibrant display.
- 4Integrated connectivity options including RJ45, SUB-D 9, and USB ports.
- 5Robust design with IP65 front panel protection and durable aluminum alloy front material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XBTGK | Product or Component Type | Advanced touchscreen panel with keyboard |
Display Type | Backlit colour TFT LCD | Display colour | 65536 colours |
Display Resolution | 640 x 480 pixels VGA | Display size | 10.4 inch |
Software Type | Configuration software | Software Designation | Vijeo Designer |
Operating System | Harmony | Processor name | CPU RISC |
Processor frequency | 266 MHz | Memory description | 512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory |
Integrated connection type | RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)<br /> male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br />2 USB type A master port (V1.1) Modicon M340 terminal port communication<br />3 removable screw terminal block digital output<br /> removable screw terminal block audio output<br /> removable screw terminal block digital input | Resistance to electrostatic discharge | 4 kV IEC 61000-4-2 level 3 |
cut-out dimensions | 285 (+/- 0.4) x 309 (+/- 0.4) mm | Touch sensitive zone | 1024 x 1024 |
Touch panel | Analogue | Backlight lifespan | 50000 hours |
Brightness | 8 levels via touch panel | Contrast | 8 levels via touch panel |
Character font | ASCII (European characters)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Korean<br />Taiwanese (traditional Chinese) | [Us] rated supply voltage | 24 V DC |
Supply | External source | Supply voltage limits | 19.2…28.8 V |
Inrush current | 30 A | Power consumption in W | 30 W |
Number of dynamic function keys symb | 18 with LED | Number of static function keys | 12 with LED and labels |
Number of SERVICE keys | 8 | Number of alphanumeric keys | 12 |
Local signalling | for normal operation or backlighting faulty 1 LED (green or orange) | Number of pages | Limited by internal memory capacity |
Downloadable protocols | Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE | Realtime clock | Built-in |
Data storage equipment | 1 Compact Flash card >= 1 GB | Use of slot | For 1 fieldbus communication card (Device Net, Profibus DP) |
Port Ethernet | 10BASE-T/100BASE-TX | Product mounting | Flush mounting |
Fixing Mode | By 4 screw clamps<br />By 12 spring clips | Front material | Aluminium alloy |
Enclosure Material | PPT | marking | CE |
Width | 11.7 in (296 mm) | Height | 13.07 in (332 mm) |
Depth | 2.9 in (72.7 mm) | Immunity to microbreaks | 10 ms |
Standards | UL 1604<br />IEC 61000-6-2<br />UL 508<br />EN 61131-2<br />FCC Class A<br />CSA C22.2 No 14 | Product Certifications | CSA Class 1 Division 2 T5<br />UL Class 1 Division 2 T5<br />cULus<br />CSA Class 1 Division 2 T4A<br />C-tick<br />UL Class 1 Division 2 T4A |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % without condensation | Operating altitude | < 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Vibration resistance | 1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
Specifications may be subject to change without notice
