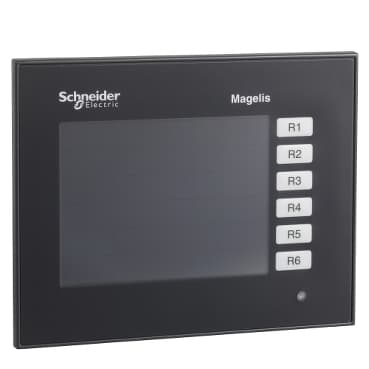

schneider XBTGT1100

Selling Points

  • 1Advanced 3.8-inch QVGA display with backlit monochrome STN LCD.
  • 2Robust industrial design with 8 levels of grey display color.
  • 3Supports multiple protocols including Modbus, Mitsubishi Melsec, and more.
  • 4Built-in real-time clock and limited by internal memory capacity.
  • 52-year warranty and reliable performance in harsh industrial environments.
Product Details
XBTGT1100
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XBTGT
Product or Component Type
Advanced touchscreen panel
Display Type
Backlit monochrome STN LCD
Display colour
Amber or red<br />8 levels of grey
Display Resolution
320 x 240 pixels QVGA
Display size
3.8 inch
Software Type
Configuration software
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Processor frequency
100 MHz
Memory description
512 KB SRAM back up of data lithium battery<br />8 MB flash EPROM application memory
Integrated connection type
removable screw terminal block power supply<br /> female MINIDIN 8 application downloading<br /> RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s
Resistance to electrostatic discharge
6 kV IEC 61000-4-2 level 3
cut-out dimensions
118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm
Touch sensitive zone
8 x 6 cells
Touch panel
Resistive film
Backlight lifespan
10000 hours red<br />50000 hours amber
Brightness
2 levels via touch panel
Contrast
8 levels via touch panel
Character font
Chinese (simplified Chinese)<br />Korean<br />Taiwanese (traditional Chinese)<br />Japanese (ANK, Kanji)<br />ASCII
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
Inrush current
50 A
Power consumption in W
7 W
Number of static function keys
6 with labels
Local signalling
for normal operation 1 LED (green)
Number of pages
Limited by internal memory capacity
Downloadable protocols
Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE
Realtime clock
Built-in
Product mounting
Flush mounting
Fixing Mode
By 2 spring clips<br />By 4 screw clamps
Front material
PPT
Enclosure Material
PPT
marking
CE
Width
5.1 in (130 mm)
Height
4.09 in (104 mm)
Depth
1.6 in (41 mm)
Net Weight
0.9 lb(US) (0.4 kg)
Immunity to microbreaks
2 ms
Standards
FCC Class A<br />CSA C22.2 No 14<br />EN 61131-2<br />UL 1604<br />UL 508<br />IEC 61000-6-2
Product Certifications
C-tick<br />UL Class 1 Division 2 T5<br />CSA Class 1 Division 2 T4A<br />cULus<br />ATEX zone 2/22<br />UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…85 % without condensation
Operating altitude
< 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel (indoor use)
Shock resistance
15 gn 11 ms IEC 60068-2-27
Vibration resistance
1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 level 3

Specifications may be subject to change without notice
