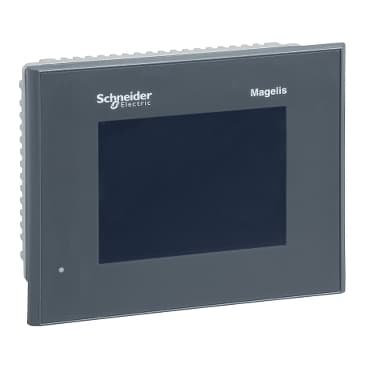

schneider XBTGT1335

Selling Points

  • 1High-Resolution Display: Features a 320x240 QVGA resolution for clear and precise visuals.
  • 2Compact Design: Measuring 3.8 inches, perfect for space-constrained industrial settings.
  • 3TFT LCD Technology: Utilizes TFT LCD technology for vibrant and reliable display.
  • 4Wide Operating Temperature: Operates between 0°C to 50°C, suitable for various industrial environments.
  • 5Versatile Connectivity: Supports various protocols including Modbus TCP, Telemecanique Modicon, and more.
Product Details
XBTGT1335
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XBTGT
Product or Component Type
Advanced touchscreen panel
Display Type
Backlit colour TFT LCD
Display colour
256 colours
Display Resolution
320 x 240 pixels QVGA
Display size
3.8 inch
Software Type
Configuration software
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU RISC
Processor frequency
200 MHz
Memory description
512 KB SRAM back up of data lithium battery<br />32 MB flash EPROM application memory
Integrated connection type
removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br /> RJ45 COM1 serial link RS232C/RS485 <= 115.2 kbits/s<br /> USB type A master port (V1.1) Modicon M340 terminal port communication
Resistance to electrostatic discharge
6 kV IEC 61000-4-2 level 3
cut-out dimensions
118 (+ 1/- 0) x 92.5 (+ 1/- 0) mm
Touch panel
Analogue
Backlight lifespan
40000 hours
Brightness
16 levels
Character font
Korean<br />ASCII<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
19.2…28.8 V
Inrush current
60 A
Power consumption in W
13 W
Local signalling
for normal operation 1 LED (green)
Number of pages
Limited by internal memory capacity
Downloadable protocols
Telemecanique Modicon Modbus TCP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE
Realtime clock
Built-in
Port Ethernet
100BASE-TX
Product mounting
Flush mounting
Fixing Mode
By 4 screw clamps<br />By 2 spring clips
Front material
PPT
Enclosure Material
PPT
marking
CE
Width
5.1 in (130 mm)
Height
4.09 in (104 mm)
Depth
1.6 in (40 mm)
Net Weight
2.2 lb(US) (1 kg)
Immunity to microbreaks
2 ms
Standards
UL 1604<br />EN 61131-2<br />UL 508<br />FCC Class A<br />CSA C22.2 No 14<br />IEC 61000-6-2
Product Certifications
C-tick<br />ATEX zone 2/22<br />UL Class 1 Division 2 T5<br />cULus<br />UL Class 1 Division 2 T4A<br />CSA Class 1 Division 2 T5<br />CSA Class 1 Division 2 T4A
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…90 % without condensation
Operating altitude
< 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel (indoor use)
Shock resistance
15 gn 11 ms IEC 60068-2-27
Vibration resistance
1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to fast transients
2 kV IEC 61000-4-4 level 3
