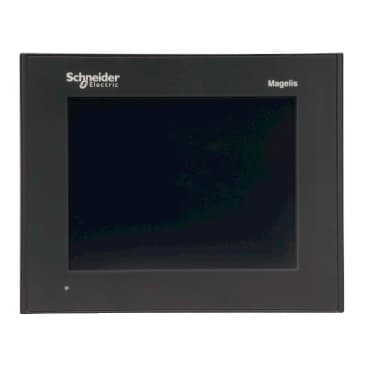

Schneider Electric XBTGT2330 Advanced Touchscreen Panel

Selling Points

1Features a 320 x 240 pixels QVGA display with vibrant 65,536 colors for clear visuals.
2Supports Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and RS-422 communication protocols.
3Equipped with an analog touch panel offering precise and responsive touch interactions.
4Designed with PPT enclosure material, CE certification, and resistance to electrostatic discharge up to 6 kV.
5Can be mounted flush using spring clips or screw clamps for easy installation in various industrial settings.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range of Product	Harmony XBTGT	Product or Component Type	Advanced touchscreen panel
Display Type	Backlit colour TFT LCD	Display colour	65536 colours
Display Resolution	320 x 240 pixels QVGA	Display size	5.7 inch
Software Type	Configuration software	Software Designation	Vijeo Designer
Operating System	Harmony	Processor name	CPU RISC
Processor frequency	133 MHz	Memory description	512 KB SRAM back up of data lithium battery<br />16 MB flash EPROM application memory
Integrated connection type	male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s<br /> removable screw terminal block power supply<br /> RJ45 Ethernet TCP/IP<br /> USB type A master port (V1.1) Modicon M340 terminal port communication<br /> RJ45 COM2 serial link RS485 <= 187.5 kbit/s	Resistance to electrostatic discharge	6 kV IEC 61000-4-2 level 3
cut-out dimensions	156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm	Touch sensitive zone	1024 x 1024
Touch panel	Analogue	Backlight lifespan	50000 hours
Brightness	8 levels via touch panel	Character font	Japanese (ANK, Kanji)<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Korean<br />Taiwanese (traditional Chinese)
[Us] rated supply voltage	24 V DC	Supply	External source
Supply voltage limits	19.2…28.8 V	Inrush current	30 A
Power consumption in W	26 W	Local signalling	for normal operation or backlighting faulty 1 LED (green or orange)
Number of pages	Limited by internal memory capacity	Downloadable protocols	Telemecanique Modicon FIPWAY<br />Telemecanique Modicon Modbus Plus<br />Telemecanique Modicon Modbus TCP/IP<br />Telemecanique Modicon Modbus<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Telemecanique Modicon Uni-TE
Realtime clock	Built-in	Data storage equipment	1 Compact Flash card >= 1 GB
Use of slot	For 1 fieldbus communication card (Device Net, Profibus DP)	Port Ethernet	10BASE-T/100BASE-TX
Product mounting	Flush mounting	Fixing Mode	By 4 screw clamps<br />By 2 spring clips
Front material	Aluminium alloy	Enclosure Material	PPT
marking	CE	Width	6.6 in (167.5 mm)
Height	5.3 in (135 mm)	Depth	2.3 in (59.5 mm)
Net Weight	2.2 lb(US) (1 kg)	Immunity to microbreaks	5 ms
Standards	UL 1604<br />UL 508<br />EN 61131-2<br />FCC Class A<br />IEC 61000-6-2<br />CSA C22.2 No 14	Product Certifications	UL Class 1 Division 2 T4A<br />ATEX zone 2/22<br />cULus<br />CSA Class 1 Division 2 T5<br />CSA Class 1 Division 2 T4A<br />C-tick<br />UL Class 1 Division 2 T5
Ambient Air Temperature for Operation	32…122 °F (0…50 °C)	Ambient Air Temperature for Storage	-4…140 °F (-20…60 °C)
Relative humidity	0…90 % without condensation	Operating altitude	< 6561.68 ft (2000 m)
IP degree of protection	IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)	NEMA degree of protection	NEMA 4X front panel (indoor use)
Shock resistance	15 gn 11 ms IEC 60068-2-27	Vibration resistance	1 gn 9…150 Hz)IEC 60068-2-6<br />3.5 mm 5…9 Hz)IEC 60068-2-6
Resistance to electromagnetic fields	9.1 V/m (10 V/m) IEC 61000-4-3	Resistance to fast transients	2 kV IEC 61000-4-4 level 3

Specifications may be subject to change without notice
